Hammer Crusher Machine
Feed opening:400x300-1000*1000mm
Feeding size: ≤ 350mm
Application: Mining, smelting, building materials, roads, railways, water and chemical industries.
Processible Materials: Limestone, granite, furnace slag, coke, cola, cobble, dolomite, salt, chalk, gypsum, alums, bluestone, iron ore, quartz stone, sandstone, non-ferrous metals, construction waste, glass, etc.
MOQ :
1

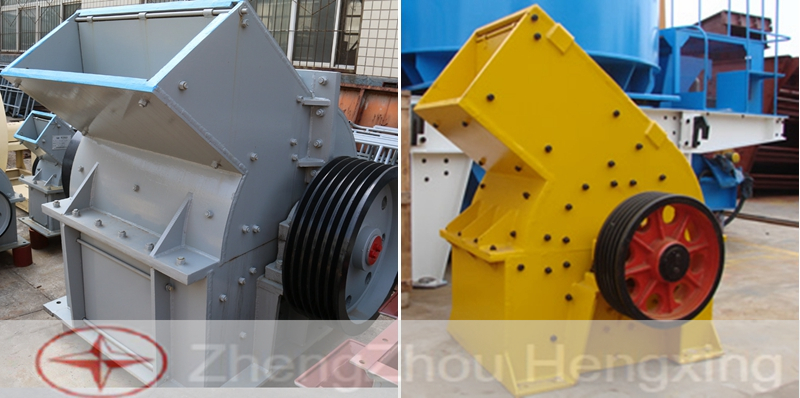

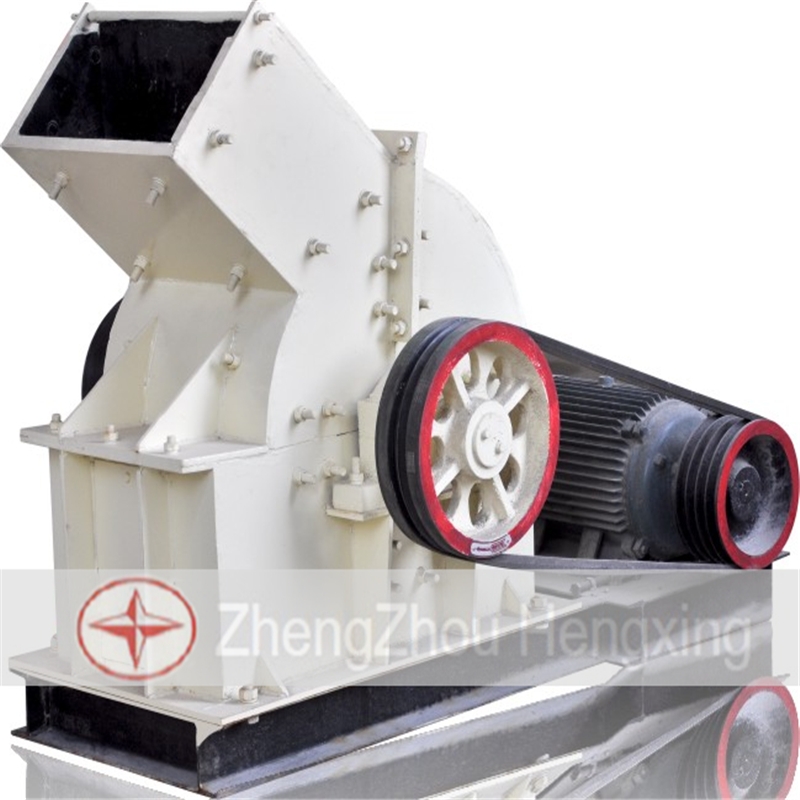

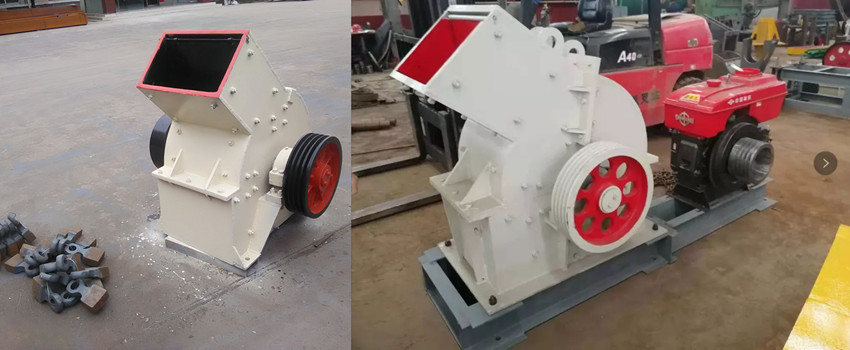

Introduction of hammer crusher
Hammer crusher is a single-stage hammer crushing machine which is able to directly crush the materials of 600-1800 mm into 25 mm or smaller size.
Hammer crusher usually applied to for the mining, cement, coal, metallurgy, building materials, roads and other industries of moderate hardness and brittle material crushing, through the high-speed rotation of the hammer and material collision broken material.
With advanced designing technology, compact structure, shock resistance, strong crushing ability and other advantages.

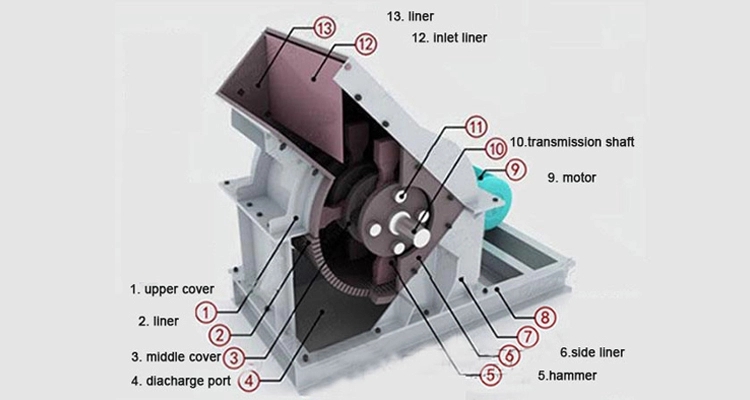

Working principle of hammer crusher:
The motor drives the rotor to rotate at high speed in the crushing chamber. Material from the upper feed port into the machine, by the high-speed movement of the hammer blow, impact, shear, grinding and grinding.
In the lower part of the rotor, a sieve plate is provided, and the particle size smaller than the size of the sieve is discharged through the sieve plate. The coarse grain size larger than the sieve size is retained on the sieve plate and continues to be hit and ground by the hammer, Outside the machine.
Features of hammer crusher:
1. High crushing ratio, durable and anti-corrosive.
2. Hammer mill with the features of anti-abrasion and anti-impacting.
3. Crushing size can be adjusted according to the requests of the customers.
4. The hammer crusher machine has a sealed structure, thus solving the problem of dust pollution in the crushing workshop and the ash leakage of the machine.
5. The structure of the hammer crusher is simple and compact, and easy to maintenance.
Hammer Crusher Technical data
Model
Feeding
size(mm)
Discharging
size(mm)
Output
(t/h)
Power
(kw)
Weight
(kg)
PC400×300
≤100
≤10
5-10
11
800
PC600×400
≤120
≤15
10-25
18.8
1500
PC800×600
≤120
≤15
20-35
55
3100
PC1000×800
≤200
≤13
20-40
115
7900
PC1000×1000
≤200
≤15
30-80
132
8650
PC1300×1200
≤250
≤19
80-200
240
13600
