Impact Stone Crusher Impact Stone Crusher

Impact Stone Crusher

Feed opening: 820x700-1600x2080mm

Feeding size: ≤500mm

Application: All kinds of ore crushing, railways, highways, energy, cement, chemicals, construction and other industries.

Processible Materials: Side length from 100 to 500 mm below the material, the compressive strength of up to 350 MPa. Limestone, coal gangue, river pebbles, granite, iron ore and so on.

  • Brand:

    Hengxing
  • MOQ :

    1
inquiry now
Product Details

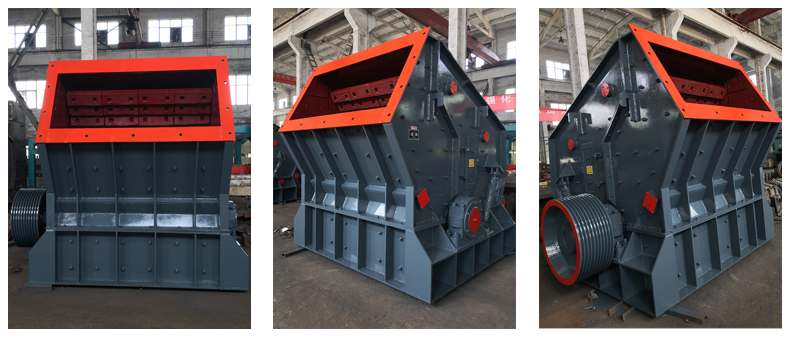

Introduction of impact crusher

PF Series Impact Crusher uses impact energy to crush the materials. This kind of crusher can crush many kinds of materials with max feed size less than 500mm and crushing strength less than 360 MP.


Impactor crusher is a new type highly efficient crushing machine with the advantages of small size, simple structure, high crushing ratio, low energy consumption, high production capacity, even product granularity and selective rock crushing.


The final products are with cubic shapes and are the ideal equipments for construction the highway and water and electricity construction. In addition, impact crushers are more suitable to process granite, limestone, bank gravel etc. in the area of highway construction, water conservancy project and architecture.


Features of impact crusher:

1. Hammer is made of high chrome, liner board is made of wearable materials, longer service life.

2. Semi-automatic safety design effectively reduces the overload risk and maintenance downtime.

3. Suitable for crushing hard rock  suitable for hard rock crushing, energy efficient;, high efficiency, low consumption.

4. Low feed inlet, ease of production line layout and increase the size of the feed

5. Easy to maintain, cost-saving, low noise.

6. Easy maintenance.


Working principle of impact crusher:

An impact crusher is a crushing machine that uses shock energy to break the material. When the impact crusher work, the rotor rotating high-speed under the motor driven, then the materials into the function area of plate hammer and impact crushing with the plate hammer in a rotor.

Structure Of Impact Crusher Machine

Vertical Impact Crusher

And then was thrown to the counterattack device again for broken, this process is repeated, until the materials being broken into the needed particle size and education by the discharging mouth.

Users can adjust the gap between the counterattack frame and rotor frame can be reached to change the purpose of material discharging size and material shape.


Impact Crusher Technical data

Model

Feed opening (mm)

Max. feed

size (mm)

Capacity

(t/h)

Motor Power

(kw)

Weight

 (t)

Dimension

(mm)

PF-1007

400×730

300

15-30

37

6

1800*1600*1800

PF-1010

400×1080

350

50-80

75

12.5

2340*2007*2500

PF-1210

400×1080

350

70-130

110

16.5

2582*2053*2809

PF-1214

400×1430

350

90-180

132

19

2582*2403*2809

PF-1315

860×1520

500

120-250

200

24

2930*2761*3053

PF-1320

860×2030

500

160-350

260

27

3290*2961*3028

PF-1515

690x1580

500

220-280

250-280

29

3553*2835*3277

PF-1520

980x2980

700

400-500

400-480

38.5

3700*3161*3128

PF-1620

1600x2080

800

350-450

500-560

47.5

3800*3350*3250

PF-1822

1500x2250

1000

550-860

630

90

4260*3550*3640

PFV-1007

400x730

300

25-45

55

10.5

1800*1600*1800

PFV-1010

400x1080

350

35-60

75

14.8

2340*2007*2500

PFV-1210

400x1080

350

45-100

110

18

2582*2053*2809

PFV-1214

400x1430

350

60-140

132

23.5

2582*2403*2809

PFV-1315

860x1520

500

70-180

200

28

2930*2761*3053
