Wheel Sand Washing Machine
Feeding size: ≤10mm
Production: 20-150 t / h
Application: Quarry, minerals, building materials, transportation, chemical industry, water conservation and hydropower, cement mixture station and so on.
Processible Materials: River pebbles, pebbles, limestone, granite, quartz sand, natural sand, machine sand, river sand and so on.
Brand:
HengxingMOQ :
1

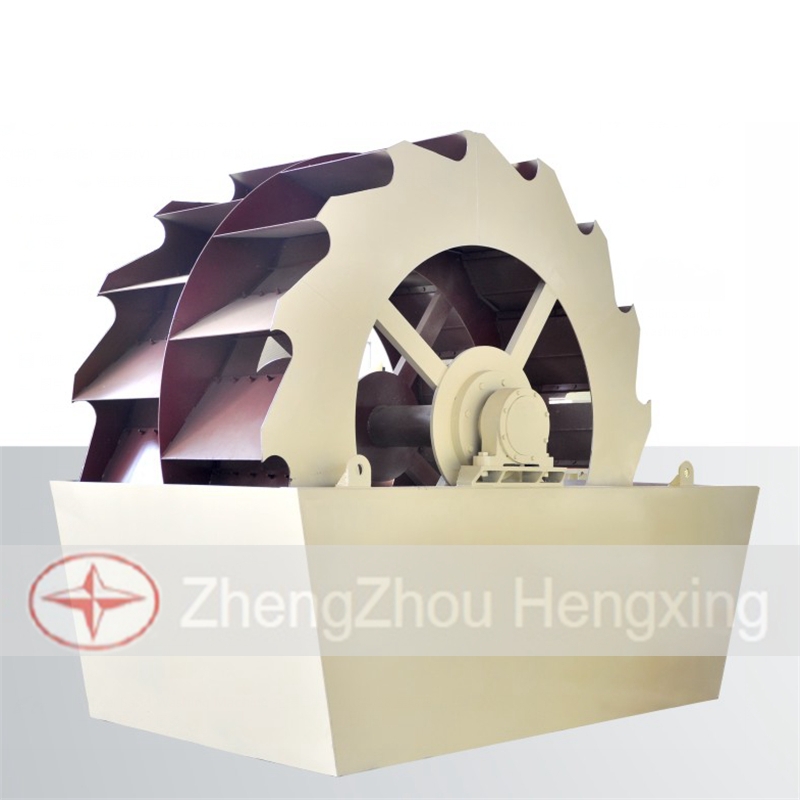

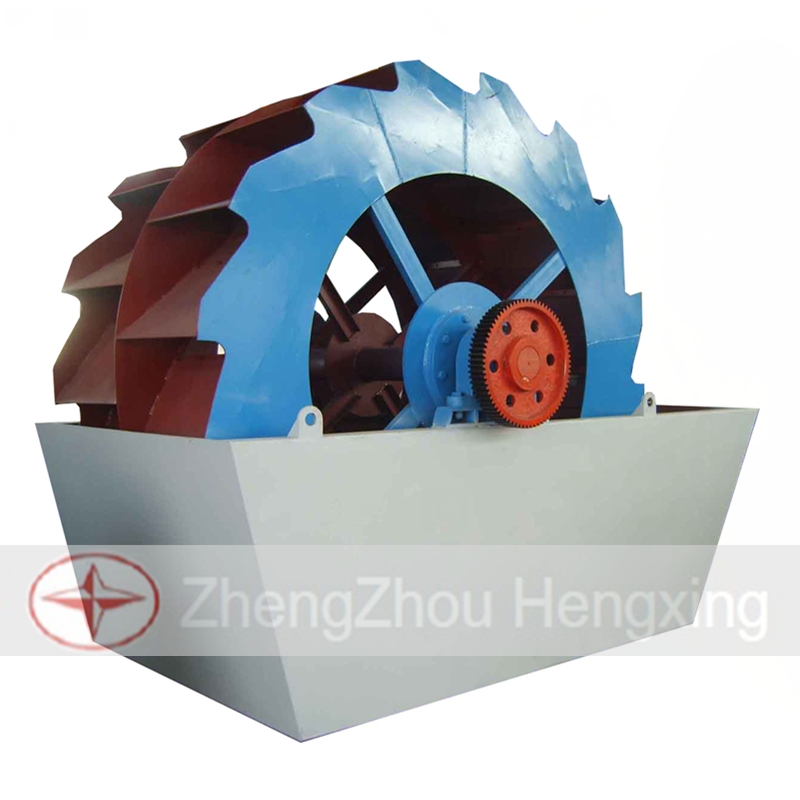

Introduction of Wheel sand washing machine
XSD series sand washing machine is a kind of wheeled washing equipment and can clean and separate the dust and powder from the sand.
It can wash the stone powder and impurity from the mixed sand that made by sand making machine, which can improve the sand quality.

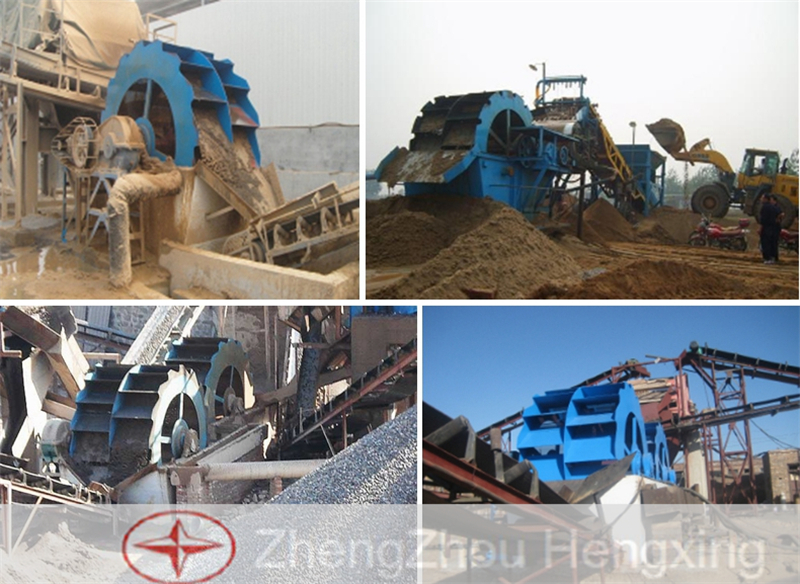

Sand washing machine is mainly used in building site, gravel plant, concrete dam building site of hydropower station, etc., and with features of high degree cleaning-up, reasonable structure, large capacity, low power consumption, small loss.
Features of Wheel sand washing machine:
1. Simple structure, stable operation, large handling capacity, small power consumption.
2. Relatively long service life, and almost no wearing parts. In need of repair in rare cases, it can greatly reduce the cost of.
3. Bearing and water, materials separately, to avoid the machine prematurely due to pollution rust caused damage phenomenon.
4. Less loss of washable material, washing of high efficiency and high-grade materials, can fully meet the requirements.
5. Saving water resources, greatly avoid pollutants damage occurred.

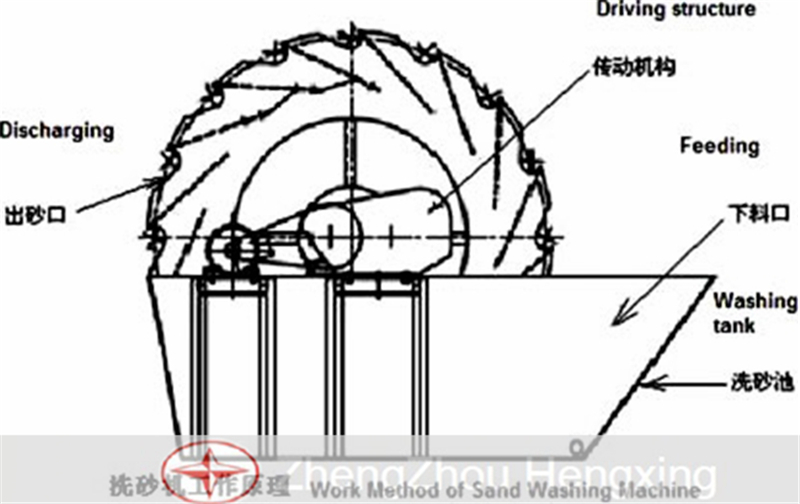

Working principle of Wheel sand washing machine:
The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, impeller rotating slowly, materials rolls with the impellor, and grinds each other, remove covering the gravel surface impurities, the destruction of the vapor layer of the coated sand in order to facilitate dehydration.
At the same time, adding water to form a strong flow of water, in a timely manner the impurities and a small proportion of foreign body away. The clean sand and stone are lifted up by the vane. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.
Technical data
Model
Impeller
Feeding
Production
Motor
Weight
Dimension
XSD2610
2600
≤10
20-50
7.5
2.7
3254×2060×2622
XSD2816
2800
≤10
30-70
11
5.5
3810×2820×2883
XSD3016
3000
≤10
50-100
15
6.1
3810×2820×3083
XSD3620
3600
≤10
80-150
18.5
9.7
4456×2479×3688
dia.(mm)
size(mm)
(t/h)
power (kw)
(t)
(mm)
