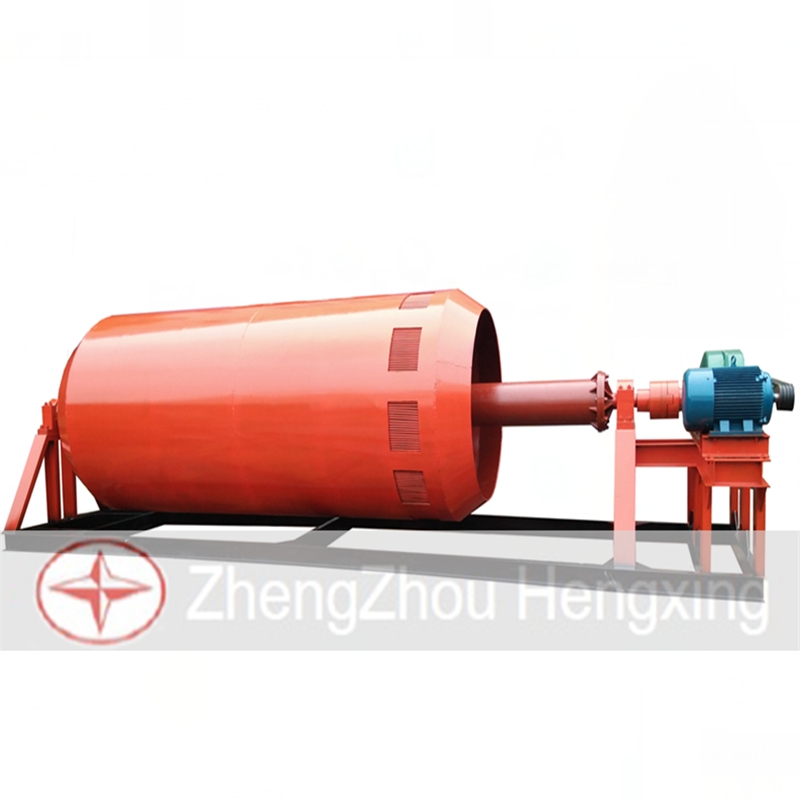

Rotary Drum Stone Washer
Dia. of cylinder: 1500-2000mm
Feeding size: 60mm-110mm
Production: 40-150 t / h
Application: Widely used in construction sites, gravel, glass, power plants, concrete to stone, high-way, rail way and electrical sites.
Processible Materials: River pebbles, pebbles, limestone, granite, quartz sand, natural sand, machine sand, river sand and so on.
Brand:
HengxingMOQ :
1

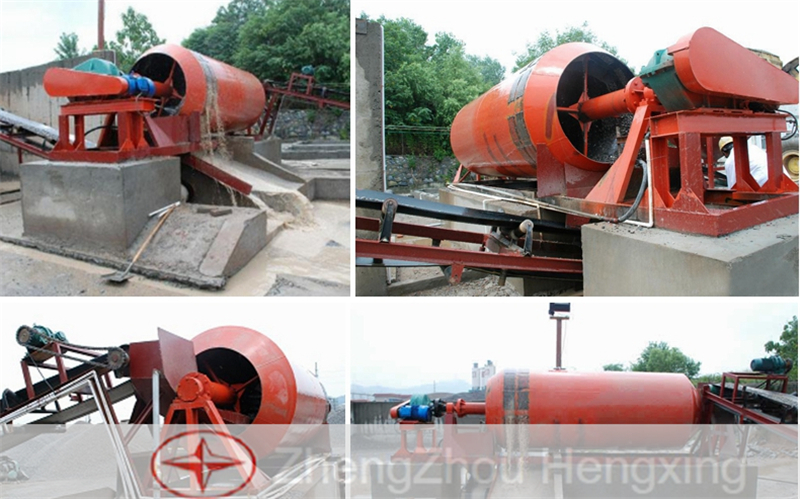

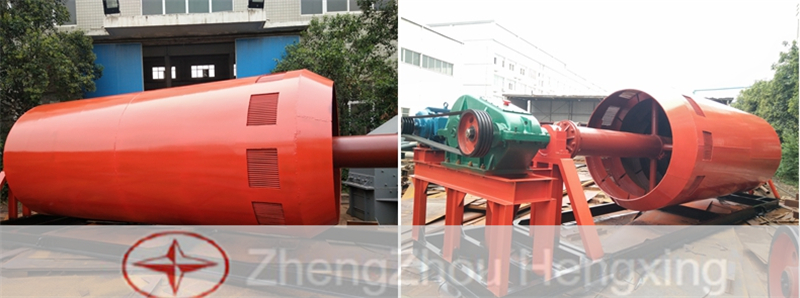

Introduction of Rotary drum stone washer
The rotary drum stone washer is mainly for the construction of highways, railways, bridges, tunnels high standards of engineering.
It is also widely applied to wash various lump ore especially those hard to wash, used to wash aggregated rock of specialized equipment, with ease of movement, processing power, and clean high rate of savings in power and so on.
It churns the fines and oversize and water together, vigorously breaking up the soil matrix as well as liberating the target mineral from tough clay, schist's, and rock. Simple and powerful structure ensure that the product efficiency, durability, cleaning, dewatering effect, and fine-grained features such as product stability.
Features of Rotary drum stone washer:
1. Reasonable structure, easy maintenance, high output, low energy consumption, high cleaning rate.
2. Long rotary drum of the scrubber retains material for longer, more vigorous washing for complete separation
3. Body is armor plated and the spiral axle is made of cast iron for durability.
4. Drive loads absorbed within the drive frame and pivoting drive frame design.
5. Efficient, wearing, and of good hydrate effect, steady final product.
6. Powder quality is easy to control, and fine adjustment is convenient, flexible and reliable.
7. The inverter control technology makes the operation more concise.
Working principle of Rotary drum stone washer:

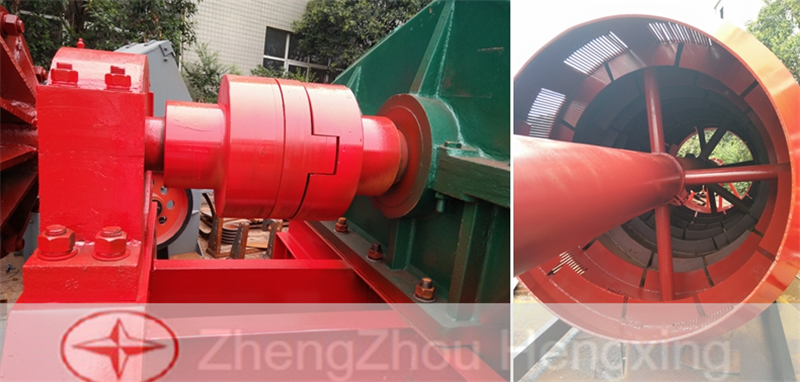

When working, electric motor drives the drum sieve to rotate after reducing speed through V-belt, gear box, gear wheel. the materials are fed in through the hopper, at the same time, add water.
Materials roll in the shell, stones are grinded mutually, to remove the surface covered with impurities. At the same time to destroy the water vapor layer coated with sand, in order to facilitate dehydration; at the same time add water, the formation of a strong water flow.
The continuous water flow brings the impurities away and is discharged through the water outlet on the bottom of the shell at the discharging end, clean materials are sent out through the outlet.
Technical data
Model
Dia. of
Shell
Rotating
Max. feeding
Capacity
Motor
Weight
Dimension
1542
1500
4200
10-13
60
40-60
15
6.8
6500×1750×1800
1842
1800
4200
10-12
80
60-80
18.5
11.8
7500×2100×2600
2020
2000
4200
9-11
110
100-150
22
18.6
8800×2200×2900
cylinder(mm)
length(mm)
speed(r/min)
size (kw)
(t/h)
(kw)
(t)
(mm)
