Dosing Machine
Production: 30-280 m³/h
Raw materials: Aggregates, animal Feeds, calcined coke, fertilizer, fly ash, frac Sand, lime, minerals, potash, woodchips, coal.
Application: Aggregate batching machine widely used to produce various kinds of concrete including quaking concrete and hard concrete, suitable for large or medium scale building works, road and bridge works and precast concrete plants, etc. It is an ideal equipment to produce commercial concrete.
MOQ :
1

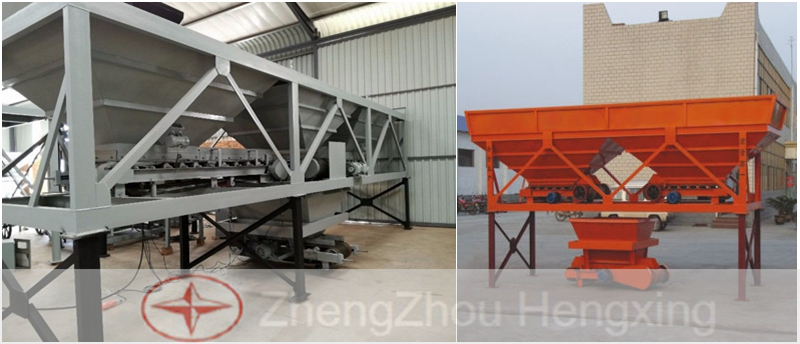

Introduction of dosing machine
PL series concrete dosing machine is a kind of automatic batching equipment matched with a concrete mixer.
It can automatically complete the batching procedure of about three to six species aggregates(concrete proportion grade two), such as sand, stone, cement and etc according to customers’ proportion setting.
The product has electric weighing, microcomputer controlling, digital displaying and wired remote controlling are adopted in this serial, so they are of advantages of accurate weighing, high precision for dosage, high speed, strong controlling function and easy operation.
It can greatly reduce the labor intensity of feeding part, improve the quality of concrete proportion.
This serial concrete batching machine can combine with the related concrete mixer to form combined concrete mixing station of different types and different specifications.
Technical data
Model
Aggregate
Cycle
Weighing range
Power
Weighing
PL800
2×4
40
1500kg±2%
6.6
Electric scale
PL800
3×4
40
1500kg±2%
8.8
Electric scale
PL1200
3×4
40
2300kg±2%
8.8
Electric scale
PL1600
3×6
40
3000kg±2%
8.8
Electric scale
PL2400
4×9
40
4500kg±2%
7.5
Electric scale
PL3200
4×20
40
6000kg±2%
11
Electric scale
bin (m3)
period (s)
and precision
(kw)
model
