Fixed Step Air Turn Over Cutting Machine

Fixed Step Air Turn Over Cutting Machine


Production: 30000-200000 m³/year

We are the leading manufacturer of AAC air turn over cutting machine in China with 15 years' producing experience, we can provide all the types equipments for AAC block production line.

  • MOQ :

    1
inquiry now
Product Details

Introduction of fixed step air turn over cutting machine

AAC cutting machine includes air turning cutting machine and ground turning cutting machine. Their production technology & equipment configuration are different, but cutting technique is the same.


Air turning cutting machine, also called step movable cutting machine, is the main equipment in AAC production. The air turnover AAC plant is the latest technology for autoclaved aerated concrete product.

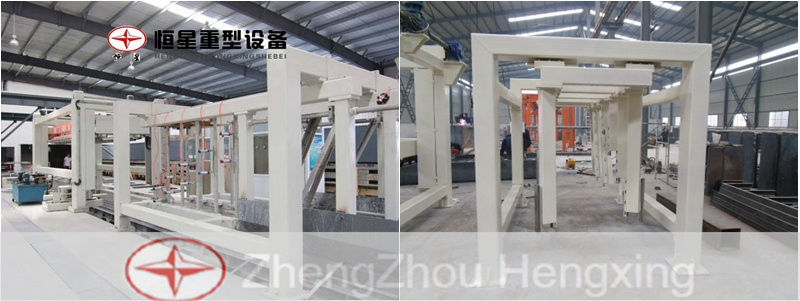

Air Turnning Over Ash Brick Cutting Machine

It uses air turnover AAC cutting machine/ aerial tumbling cutting machine, PLC batching system, complete full automatic control for all the AAC plant, use less workers, save cost and improve the rate of finished goods, efficiency.


According to the different raw material, we can provide sand AAC brick making machine/ sand AAC block machine and fly ash AAC block production line.

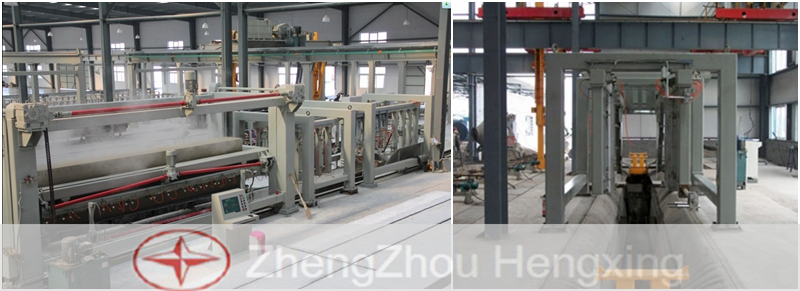

Solid Brick Making Cutting Machine

Features of fixed step air turn over cutting machine

1. This cutter has simple and compact structure, convenient for maintenance action.

2. It has high working efficiency, it can turn over blocks meanwhile cutting blocks.

3. Balanced and reliable turnover.

4. High cutting accuracy of blocks.

5. Two models of transect drive: mechanical drive and hydraulic drive.

6. It can do notch milling meanwhile cutting blocks, suitable for panel processing

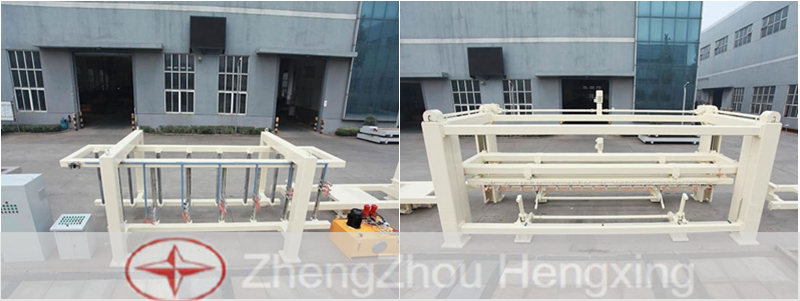

AAC Block Making Machine

Working principle of fixed step air turn over cutting machine

The tilting crane in AAC production line turns the mould 90 in the air, demoulds the cake and puts it on the cutting table together with the side plate.


The cutting cart driven by the motor runs slowly through the vertical cutting device, and runs on the horizontal cross¬-cutting support falls down from the top to make horizontal cutting until the reset upward.


Technical data

Item

Data

Note

Capacity (m³/year)

50000-200000

Annual production

Size of the cake(m)

6x1.2x0.6

net size

Cutting cycle (mm)

 5/10

Vertical cutting/Cross cutting

Cutting precision (mm)

±3 ±1.5 ±1.5

Length, width, height

Production cycle (min/mould)

6



Weight of main machine (t)

18

Vertical cutting/Cross cutting

Main power(kw)

12.9

Including the hydraulic station
