Ground Turning Over Cutting Machine Ground Turning Over Cutting Machine

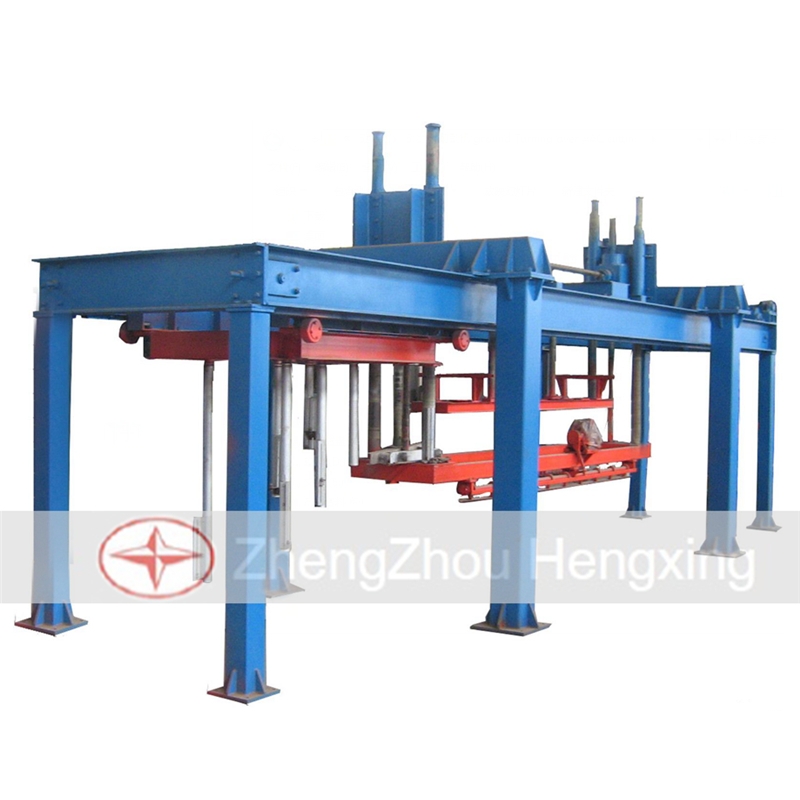

Ground Turning Over Cutting Machine

Production: 30000-300000 m³/year

Raw materials: Cement, lime, sand( or fly ash), gypsum, aluminum powder, water.

Application: Cutting the concrete blank in six sides: two vertical sides firstly, then horizontal cutting cross cutting longitudinally, and the horizontal cutting cross cutting or chopper-like cutting at last

  • MOQ :

    1
inquiry now
Product Details

Introduction of ground turn over cutting machine

Cutting machine is the main equipment of AAC production line , especially for the capacity more than 50000 cubic meters. It’s a necessary equipment to improve capacity and equality.


Our ground turn over cutting machine with advanced technology, can make the blank body with only one step, turning cut the six sides. Solve the problems of fish scale striae, double fold eyelids & edge breakage, inaccuracy brick size and long circle cutting which existed on the old domestic cutting machine.

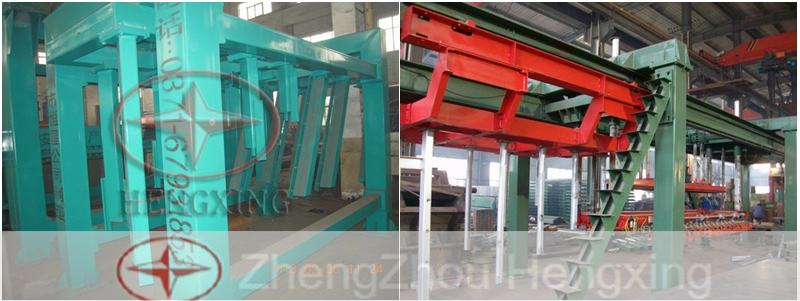

Ground Turn Over Brick And Block Cutting Machine

Advantages of ground turn over cutting machine

1. Compact structure, easy operation and little maintenance.

2. Horizontal cutting and vertical cutting finished once.

3. Hexahedral cutting of the green brick, product precision in accordance with GB/T 11969-1997.

4. Satisfying requirements of panel production, product precision in accordance with GB/T 15762-1995.

5. Recycling all the scraps, no secondary pollution occurs.

6. Green bricks are not conglutinated.

7. Lead screw drive used in cross –section cut, solving out–of–step of fluid drive.

8. Spacing and interlocking in the mechanical system to prevent accidents caused by improper operation.

9. With the equipment to replace steel wire rapidly.

10. No bowtie and crack.

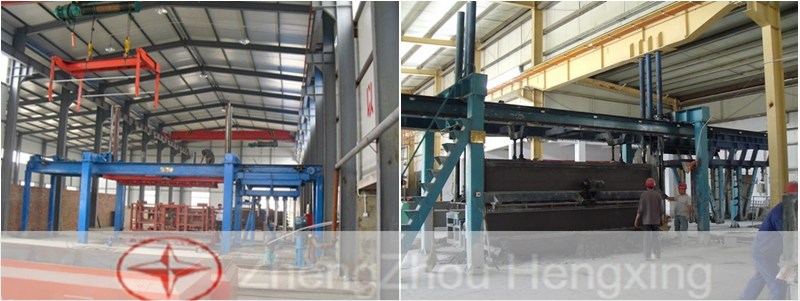

Fly Ash Block Ground Turning Over Cutting Machine

Working principle of ground turn over cutting machine

The prestreamed body is lifted by the pointed traveller to the turnover table and stripping the die grid and turned for 90° by hydraulic unit, and then making sixway cutting by the longitudinal and transverse units.

After cutting the body is turned for 90° by the hydraulic unit to the original positon, finishing a cutting period.


Technical data

Model

Semi finished product
 before cutting (mm)

Cutting
 cycle (about)

Cutting ability
 (m³/year)

Cutting
 precision (mm)

Cutting
precision (kw)

Dimension
(m)

4M

4050X1240X650

6 Block/minute

over 10

Six-side cutting
 < ± 2

34

13.5x4.2x5.8

4.2M

4250X1240X650

6 Block/minute

over 15

Six-side cutting
 < ± 2

34

13.8x4.95x5.87

4.8M

4850x1240x650

6 Block/minute

over 20

Six-side cutting
 < ± 2

34

14.5x4.95x5.87

6M

6050X1540X650

6 Block/minute

over 20

Six-side cutting
 < ± 2

37

17.5x4.6x6
