Apron Feeder
Application: They are widely used as feed and discharge conveyors in crushing plants to convey coarse and abrasive materials such as limestone, hard rock, coal, ores and overburden in the cement and raw material industry.
They provide a positive, consistent, forward material flow for a wide variety of applications including mining, quarrying, coal recovery and other mineral processing applications.
MOQ :
1

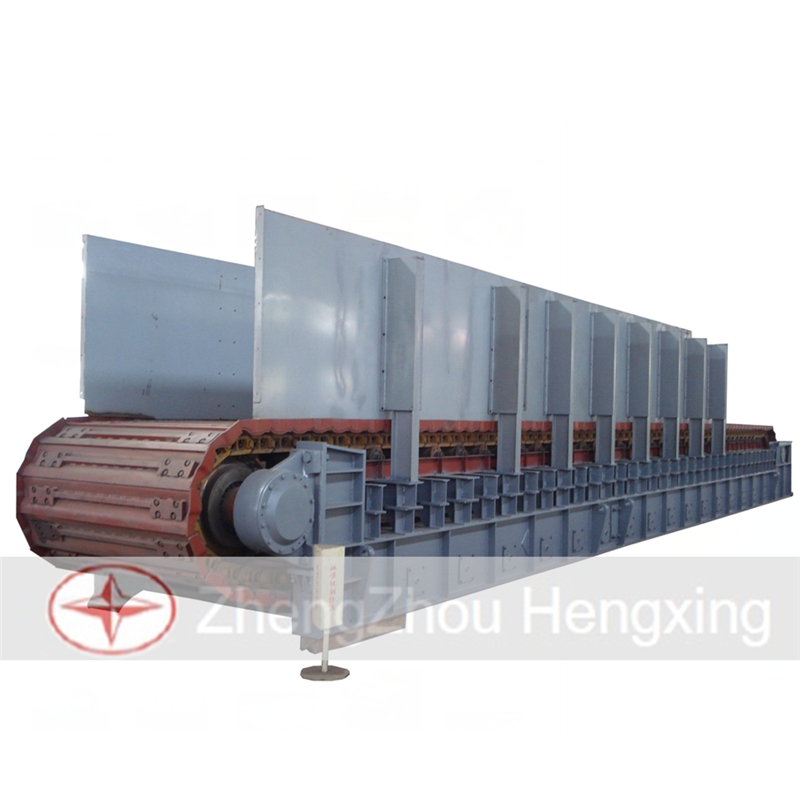

Introduction of apron feeder
Apron feeder is one of the conveying equipment, It is used to continuously and uniformly feed minerals to devices like crushing or conveying equipment in nonferrous metals mining cement fertilizer chemical metallurgical paper mining dressing ingredients industries etc.

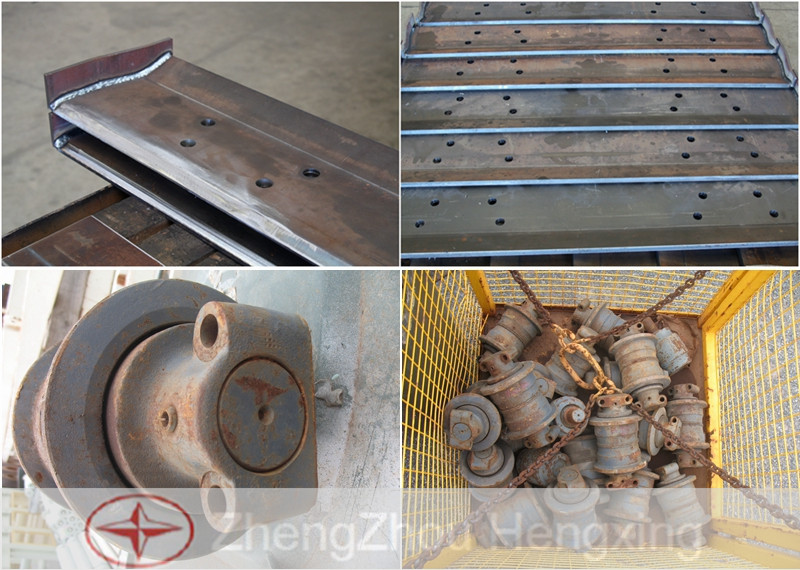

The continuous steel belt of the apron feeder is made up of overlapping steel plate, that are connected to and supported by steel chains with the underside reinforced and designed to withstand impact loading. Both the carrying and returning rollers feature lifetime-lubricated, fully-sealed bearings.
Both the carrying and returning rollers feature lifetime-lubricated, fully-sealed bearings. Apron feeder can perfectly solve the transportation problem of loose and block materials as well as large feeding quantity problem in large and medium production lines. It is especially suitable for transporting large, high temperature and sharp materials, and it can reliably work in harsh and humid outdoor environments.
Apron feeder has been widely used in cement, building materials, metallurgy, mining and other industrial sectors for its superior performance advantages.
Advantages of mining use apron feeder
1. Horizontal or slightly inclined transport from 0° to 30°
2. Excellent adaptability, the temperature, moisture and the environment have little or no effect on it.
3. Crawler tractor components made of hardened steel construction with a unique sealed design for long life
4. Large carrying capacity. The slot board adopts stamping and welding structure, being able to adapt the delivery of denser materials.
5. Conveying distance is up to 80m with material temperature lower than 120°C
6. Advanced technology, wide application, high efficiency.
7. Carry rollers can be changed without need to raise chain, long durability and easy maintenance.

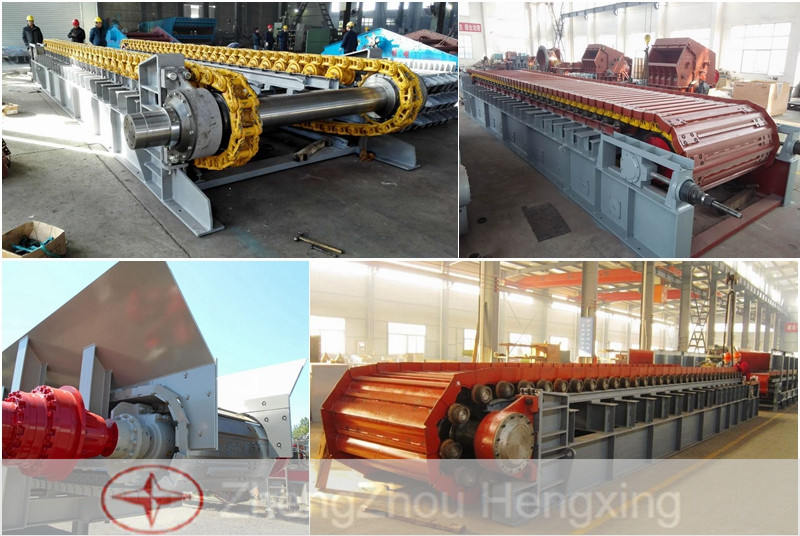

Structures of cement apron feeder
1. Transmission device motor speed reducer coupling etc.
2. Head wheel head frame driving shaft chain wheel transmission shaft and front frame.
3. Chain, chain plate.
4. Tail wheel chain wheel rear rack tension device etc.
5. Support and side board.
6. Intermediate frame.
Working Principle of plate feeder
The apron feeder consists of heavy-duty conveyor chains, on which the apron pans are mounted. The chains run on support rollers that are mounted to the apron feeder frame. They are driven by chain sprockets and tensioned either mechanically or hydraulically.
Running parts is a key of the machine. It can be dragged by circular circuit drag chain; drag chain can be traction on supporting wheel and supporting roller can support conveying channel so as to convey materials.
The raw materials from the quarry are dumped directly into a reinforced feed hopper and extracted by the apron feeder. The apron feeder ensures a steady flow of material to the next stage of the process, typically a crushing plant.
Technical data of Mining conveyor
Model |
Width of |
Wheel |
Speed |
Feeding |
Capacity |
Motor |
Dimension |
Weight |
XBW100 |
1000 |
6000 |
0.01-0.1 |
≤500 |
80-160 |
11 |
86200*4960*1600 |
15 |
XBW120 |
1200 |
11000 |
0.01-0.1 |
≤600 |
50-100 |
15 |
11463*5029*2860 |
23.5 |
XBW125 |
1250 |
6000 |
0.014-0.8 |
≤800 |
45-150 |
11 |
8620*5240*1950 |
18.9 |
XBW140 |
1400 |
16000 |
0.006-0.06 |
≤900 |
20-200 |
22 |
18310*6447*3020 |
45.9 |
XBW150 |
1500 |
10500 |
0.006-0.06 |
≤700 |
61-610 |
22 |
12850*5595*1705 |
49.4 |
XBW160 |
1600 |
6000 |
0.017-0.17 |
≤800 |
≤500 |
22 |
8354*6099*2100 |
25.5 |
XBW180 |
1800 |
8000 |
0.022-0.046 |
≤800 |
30-320 |
37 |
10300*4295*3650 |
53 |
XBW220 |
2200 |
10000 |
0.018-0.055 |
≤1500 |
220-680 |
45 |
12650*4495*3350 |
80.4 |
XBZ160 |
1600 |
9000 |
0.01-0.07 |
≤1000 |
≤500 |
30 |
11250*4153*2890 |
50 |
XBZ180 |
1800 |
8000 |
0.01-0.07 |
≤1000 |
≤500 |
37 |
10250*4353*2890 |
59 |
XBZ200 |
2000 |
9800 |
0.01-0.07 |
≤1000 |
≤700 |
45 |
12000*4553*2890 |
82 |
XBZ220 |
2200 |
10000 |
0.01-0.07 |
≤1000 |
≤800 |
45 |
12000*4753*2890 |
85 |
XBZ230 |
2300 |
10000 |
0.01-0.07 |
≤1500 |
≤850 |
55 |
12000*4853*2890 |
86 |
XBZ240 |
2400 |
10000 |
0.02-0.06 |
≤1600 |
550-900 |
2*37 |
12000*4953*2890 |
95 |
XBZ250 |
2500 |
11460 |
0.01-0.07 |
≤1800 |
100-1000 |
2*45 |
12000*5053*2890 |
105 |
