Belt Conveyor
Conveying speed: 1.3–2.0 m/s
Processing ability: 4.5-864 t/h
Belt width: 500–1600 mm
Length: 0–40 m
Application: Belt conveyor is widely used for transporting bulk materials or packed products in mining industry, building materials industry, metallurgy industry, coal and other industries.
Processible Materials: Coal, gravel, sand, cement, chemical fertilizer, food, etc.
MOQ :
1

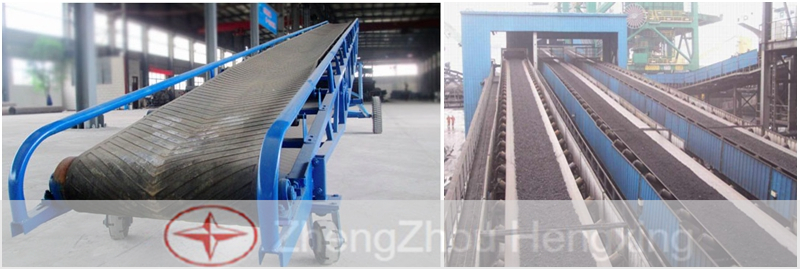

Introduction of Belt Conveyor
Belt Conveyor can be divided into main steel structure, conveyor belt, conveyor belt system and convey belt. Belt conveyor transport materials in a certain line, they can convey materials in horizontal, inclining and vertical directions and can be arranged as space conveying lines.
The conveyor transfer system can be one single or multi-conveyors or combined with other transfer equipments according to various transferring requirements. And Hengxing belt conveyor can be installed horizontally or aslope to meet the needs of different transfer lines.
Features of Belt Conveyor
1. Long transportation distance, big transportation quantity, continuous transportation.
2. Simple in structure, easy to maintain, long service life.
3. Reliable operation and easy realization of automation and centralized control.
4. Using a rubber isolation spring, low noise, smooth over the resonance region.
5. The speed of belt conveyor can be fixed or adjustable.
Working principle of Belt Conveyor
The revolving cylinder of the conveyor belt is called driving cylinder, and the other cylinder which is mainly used for changing the moving direction of the belt is called redirection cylinder.
The driving cylinder drive the device through the electromotor on the reducer, and the belt pulls relying on the friction of the driving cylinder and the conveyor belt. The driving cylinder is usually installed on the materials discharging side for purpose of increasing the pulling force.
The materials are fed from the feeding end, and then they will fall on the revolving conveyor belt, and relying on the friction force of the belt conveyor, the conveying materials are driven to the material discharging end for discharging.
Technical data
Belt width(mm)
Conveying
length(m)
Conveying
Conveying
500
≤12
3
12-20
4-5.5
20-30
5.5-7.5
1.3-1.6
78-191
650
≤12
4
12-20
7.5
20-30
7.5-11
1.3-1.6
131-323
800
≤6
4
<=10
7.5
15-30
7.5-15
1.3-1.6
278-546
1000
≤10
5.5
10-20
7.5-11
20-40
11-22
1.3-2.0
435-853
1200
≤10
7.5
10-20
11
20-40
15-30
1.3-2.0
655-1284
1400
≤10
11
10-20
18.5
20-40
22-37
1.3-2.0
893-1745
1600
≤10
15
10-20
22
20-40
30-45
1.3-2.0
1069-2195
Power(kw)
speed(m/s)
amount(t/h)
