Pouring Mixer
Volume: 4.17m³
Mixing Speed:260 r/min
Raw materials: Concrete Fly ash sand lime gypsum cement
Application: It is used to mix all the raw materials evenly to reach the physical and chemical standard. We have movable and fixed pouring machine.
MOQ :
1
Introduction of pouring mixer
Aerated concrete Pouring mixer is the main equipment in the production of aerated concrete, features for its stable performance in operating.
The mixing & casting this mixing& casting machine is mainly used to mix the slurry, cement, quick lime, gypsum and aluminum paste suspension which injected to the mould box according to certain proportion, mixing all materials evenly, fully reaction, and pour the mixed materials into the mould.
The mixing strength and mixing time of material in barrel has important influence on the aerated concrete quality.
Working principle of pouring mixer

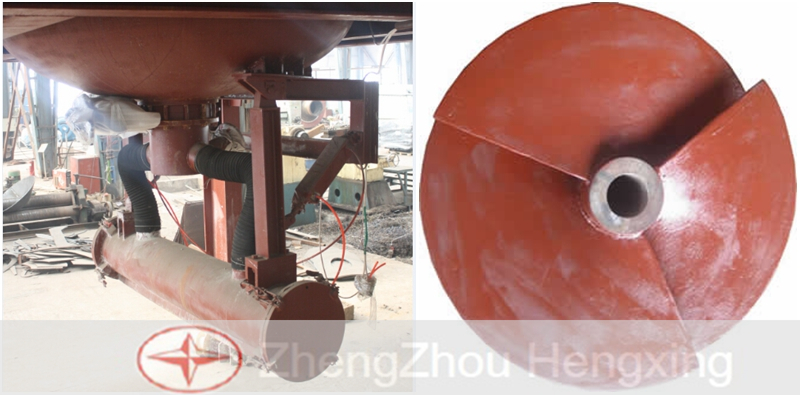

Pouring mixer is made up of mixing tank, motor, casting pipe, thermometer, mixing shaft and blade and pneumatic valve. It is used for mixing lime powder, cement, gypsum, aluminum slurry, coal fly ash slurry or sand slurry.
Pouring process is divided into mobile and fixed-point pour two types of pouring. The native points fixed type and movable with slurry, and quantitative pouring on the mould .
Mixing use propellers whisk, to make solid material and slurry mixing in a short period of time. By propeller type agitation, form a strong eddy current on the interior of the tank.
Adding a small amount of auxiliary materials such as lye, sodium silicate, surfactants and gas evolution agents - aluminum powder in a very short time, the destruction of lime particles coated, the rapid spread to all parts of the slurry to ensure uniform gas evolution and fully mixed.
Drop at the same time adjust the height with the casting process of pouring arm, prevent splashing. The native points fixed type and movable with slurry, and quantitative pouring on the mould.
Technical data
Model
Pouring Type
Volume of
Rotary
Running
Power
JBG-4
Fixed
3.6
500
/
30
JBY-4
Floating
3.6
500
12
30
JBG-6
Fixed
5.6
500
/
37
Mixer(m3)
Speed(r/min)
Speed (m/min)
(kw)
