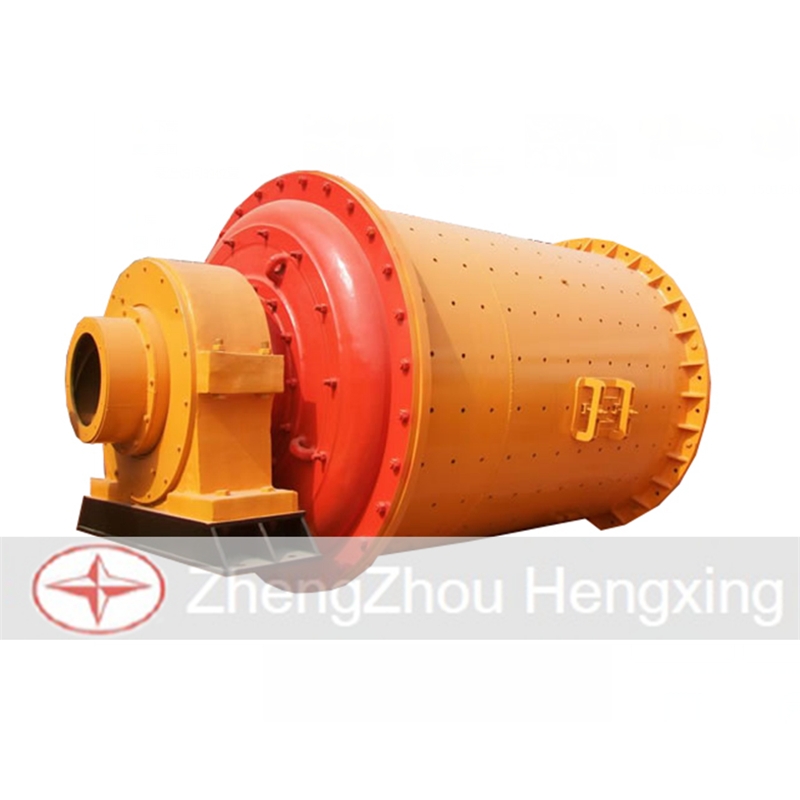

Rod Mill

Rod Mill

Feeding size: 25-50mm

Production: 3–120 t/h

Application: Cement, silicate products, new building materials, refractories, fertilizers, black and non-ferrous metal processing and glass ceramics and other production industries.

Processible Materials: Quartz stone, iron ore, copper ore, gold ore, cement clinker, pyrrhotite, hematite, limonite, construction waste and so on.

  • MOQ :

    1
inquiry now
Product Details

Introduction of rod mill

Rod mill or grinding rod mill can be widely applied in some fields such as refractory, chemical industry, metallurgy, glass and some other industries that have the higher requirement on the uniformity of the finished product.

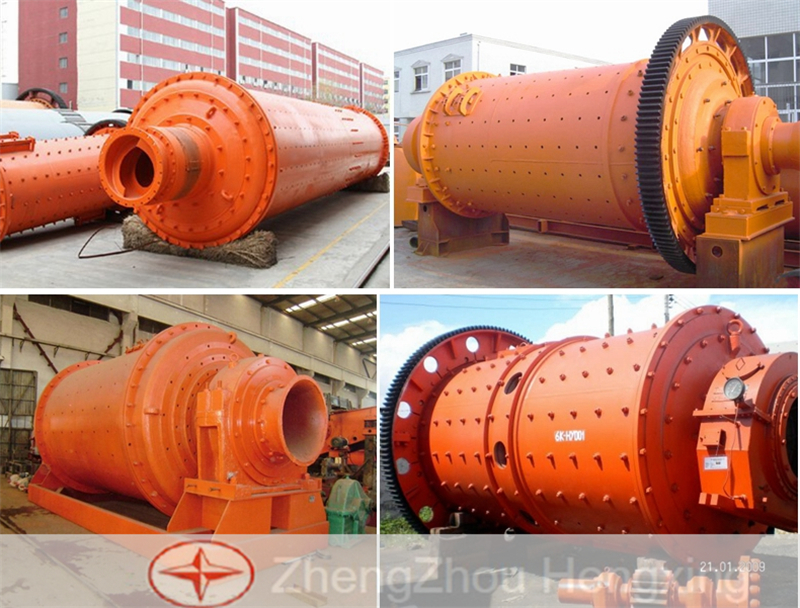

Used Ball Mill

Rod mill consists barrel, feeding part, discharging part, bearing part and lubrication system. Rod mill has many advantages such as high yield and uniform discharging size, which is suitable for the different hardness of ores. Rod mill has dry and wet types to be chosen, customers can choose the appropriate type according to their actual conditions.

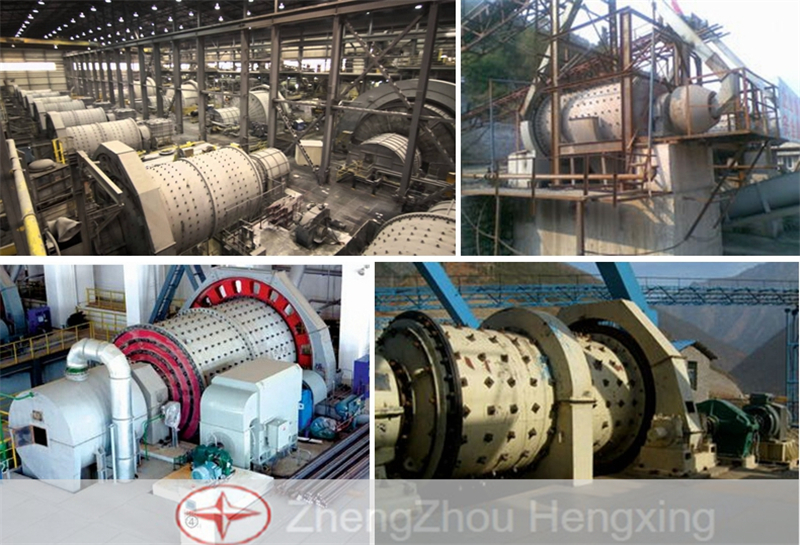

Rod mill is widely applied in metal and nonmetal mine, water conservancy, glass and construction materials industries, mainly suitable for grinding various ores and rocks and artificial sand-making.

Rod For Small Ball Mill

Features of rod mill:

1. It can save 15% of power, the granularity of product is uniform.

2. Large discharge opening, high capacity.

3.  Discharging particle more uniform, suited for different ores.

4. Easy and safe operation, stable performance

5. Low invest, high return.

Small Ball Mill

Working principle of rod mill:

Rod mill by the motor through the reducer and the surrounding large gear deceleration drive or by the low-speed synchronous motor directly through the rod mill over the surrounding large gear reduction drive, drive the cylinder rotation.


Material through the feed device evenly gets into the rod mill warehouse. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. When hitting the material, coarse ones are to be broken firstly, then the smaller. Repeat many times, we would get fine materials. The ground materials are discharged through the discharging board thus the grinding process is finished.


Technical data

Model

Cylinder
 speed(r/min)

Feeding
 size(mm)

Discharge
 size (mm)

Capacity
 (t/h)

Power
(kw)

Dimension
(mm)

Weight
(t)

Φ900*1800

29.0-31.3

25

0.16-5

1.6-6

22

5900×2365×2015

6.2

Φ 900*3400

29.0-35.4

25

0.16-5

2.9-10

30

5250×2480×2127

6.6

Φ1200*2400

27.0-34.0

25

0.16-5

5.0-13

55

5829×2867×2540

13.5

Φ1500*3000

26.5-29.5

25

0.16-5

6.0-25

95

7635×3329×2749

18.2

Φ1800*3000

21.6-22.8

25

0.16-5

4.8-28

155

8007×3873×3023

35

Φ2100*3000

19.0-21.0

25

0.16-5

12.6-30

155

9000×2800×3800

43

Φ2100*3600

19.0-21.0

25

0.16-5

15.1-45

210

9600×2800×3800

58

Φ2700*3600

17.2-18.5

25

0.16-5

25.0-75

400

10870×6100×4950

71.5

Φ2700*4000

17.2-18.5

25

0.16-5

27.7-90

420

11500×6100×4950

73.6

Φ3200*4500

15.4-16.6

25

0.3-0.074

44-21

630



110

Φ 3600*4500

14.5-15.6

25

0.3-0.074

72-33

1250



160
