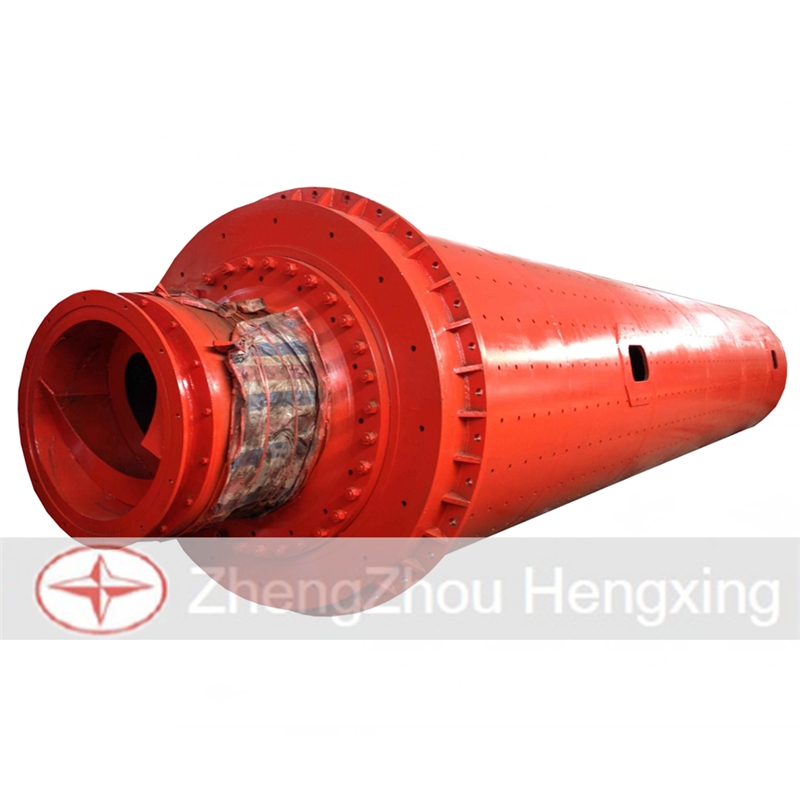

Tube Mill

Tube Mill

Feeding size: 25mm

Production: 10–110 t/h

Application: Cement, silicate products, new building materials, refractories, fertilizers, black and nonferrous metal processing and glass ceramics and other production industries.

Processible Materials: Quartz stone, iron ore, copper ore, gold ore, cement clinker, pyrrhotite, hematite, limonite, construction waste and so on.

  • MOQ :

    1
inquiry now
Product Details

Introduction of tube mill

Tube mill is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable.

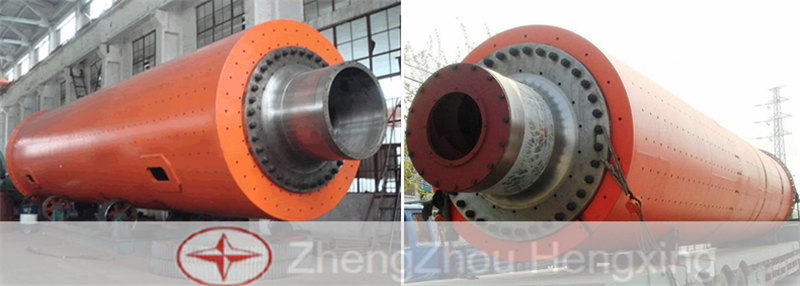

Industrial Ball Mill

The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance.


Tube mill has the advantage of high yield and uniform discharging size, which is suitable for the different hardness of ores. Rod mill has dry and wet types to be chosen, customers can choose the appropriate type according to their actual conditions.


Features of tube mill :

1. Low energy consumption, the granularity of product is uniform.

2. Large discharge opening, high capacity.

3. The fineness of the material is adjustable, suited for different ores.

4. Easy and safe operation, stable performance

5. The hollow axis adopts the cast steel and the lining can be replaced.

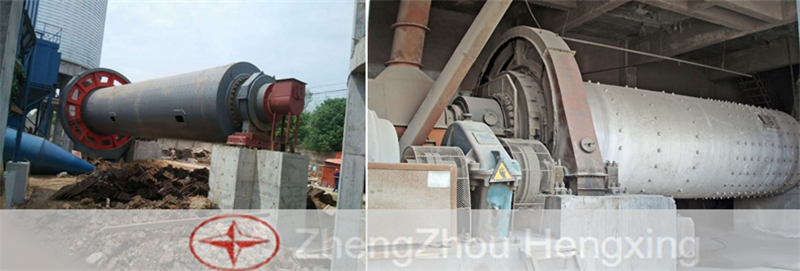

Planetary Ball Mill

Working principle of Tube mill:

The tube  mill drives the cylinder in rotation by the engine through the rotation of the reducer and big gears around with the deceleration or through the low-speed synchronous motor driving directly peripheral big gears.


The centrifugal force caused by rotation of barrel brings the steel tube to a certain height and impact and grind the materials. The materials to be crushed are continuously added to the cylinder, shattered by the rotating grinding medium. The ground materials are discharged through the discharging board thus the grinding process is finished.


Tube Mill Technical data

Model

Cylinder
 speed(r/min)

Capacity(t/h)

Power
(kw)

Weight
(t)

Raw material

Cement

Φ2200*6500

21.95

17-19

12-14

380

48.5

Φ 2200*7500

21.95

19-21

15-16

380

51.4

Φ2200*11000

21.95

20-22

14-16

570

79.5

Φ2400*7000

20.4

22-24

14-15

475

68.5

Φ2400*10000

20.4

28-30

17-18

630

98.6

Φ2600*7000

19.6

22-25

 --

570

85

Φ2600*13000

19.7

37-42

25-30

1000

164.5

Φ3000*9000

18.7

36-44

30-35

1400

157.2

Φ3000*11000

18.7

55-65

40-47

1000

175

Φ3200*9000

17.7

48-52

 --

1000

126

Φ3200*12000

17.8

68-75

48-56

1000

210

Φ3400*7500

16.9

56-60

44-48

2000

166.7

Φ3500*11000

16.5

70-75

50-55

2500

141

Φ3800*12000

16.3

 --

58-60

2x1600

225.6

Φ4000*13000

15.46

 --

90-100

2800

376

Φ4200*11000

15.75

 --

 --

2800

254.2

Φ4600*11000

15

140-150

105-110

2x630

272
