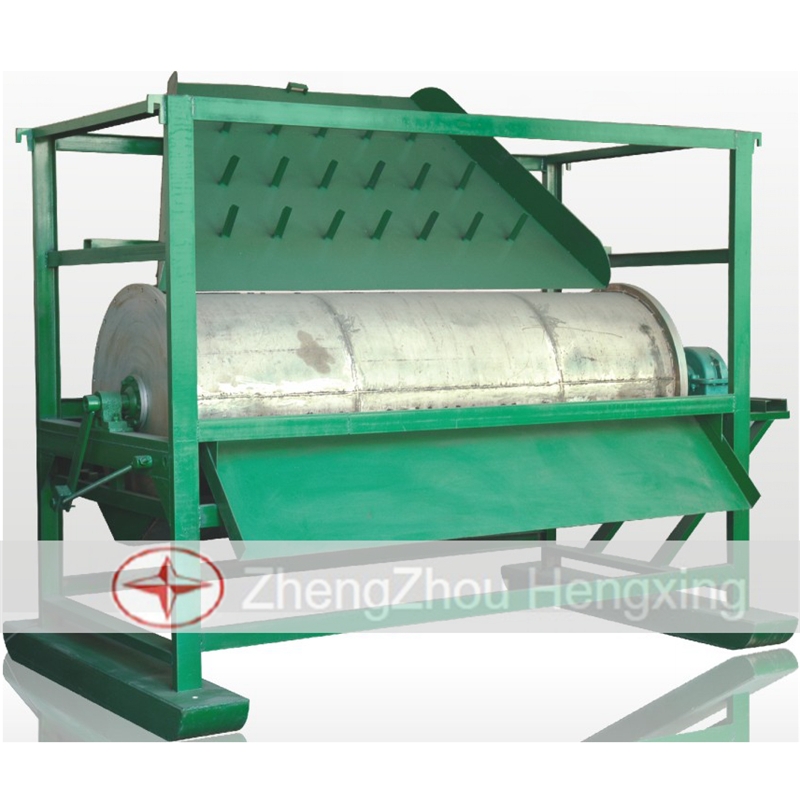

Dry Magnetic Separator
Feeding size: 0-10mm
Production: 30-200 t / h
Application: Size below 10mm, manganese ore, magnetite, pyrrhotite, roasting and other materials, magnetic separation.
Processible Materials: Manganese ore, hematite, pyrrhotite, limonite, roasting ore, magnetite, and so on.
MOQ :
1

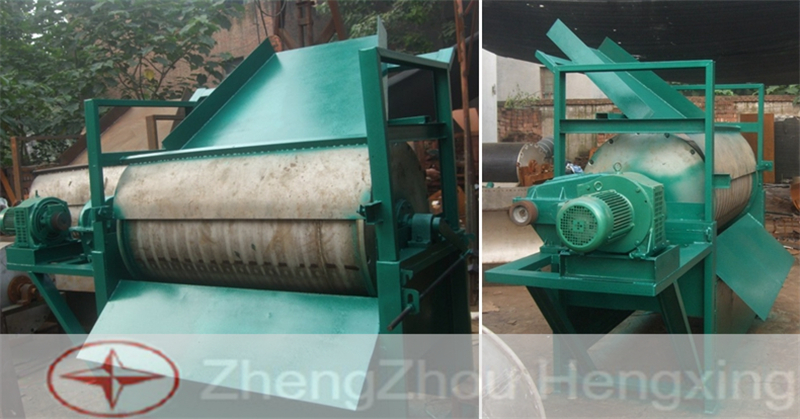

Introduction of Dry Magnetic Separator
Dry magnetic separator is the mainstream of strong magnetic separator equipment which is commonly used in iron ore and manganese ore equipment. They are mainly applied in primarily separating low-grade ores to improve raw ore grade for feeding mills and to lower costs for ore separation.
They are also suitable for de-ironing non-metallic materials. Dry magnetic separator is a magnetic mineral processing machinery which is for dry magnetic mineral sorting.
Dry magnetic separator is an equipment that is to separate magnetic material especially to separate dry magnetic material. And the material separated must be dry and the particles should keep independent and could move freely, otherwise, this dry magnetic separator could not work well to influence the select result.
Therefore this dry magnetic separator machine is especially suitable for the arid region to save water. Dry magnetic separator is suitable for the size of 3mm magnetite, for example, magnetic pyrite, roasted ore, titanium iron and other materials of wet magnetic separation, also used for coal, non-metallic minerals, building materials and The material of iron removal operations
Features of Dry Magnetic Separator
1. The separators are available with dust housing designs and magnetic drum assemblies in several designs to meet varying requirements.
2. The dry separator is used for iron ore with particles sizes up to 20 mm.
3. The magnetic system is available in five designs and allows for very highest loading with excellent selectivity at highest recovery.
4. Less maintenance, lower capital, and operating costs.
5. Dry magnetic separation can be more flexible than conventional wet magnetic separation and can provide large savings in grinding costs by recovering the valuable minerals at an early process stage.
Working principle of Dry Magnetic Separator
The slurry mineral grains is in a loose state when entering the tank mine. Along with the cylinder moving, because the magnetic particles and non-magnetic particles in the magnetic field, the magnetic force, the magnetic objects adhere to the cylinder and form magnetic materials.
And the magnetic materials along with the cylinder would be discharged to a tank when cylinder come into minima edge magnetic. The non-magnetic material would finally be discharged to another tank.
Technical data
Model
Cylinder size
Capacity
Feeding
Power
(kw)
Ore
Rotation
Drum high
Weight
TNG-7518
750*1800
40-50
0-8
3
≤3
34
2500-4500
1980
TNG-9018
900*1800
45-55
0-8
4
≤3
30
2500-4500
2800
TNG-1018
1050*1800
100-120
0-8
5.5
≤3
24.5
2500-4500
4000
TNG-1021
1050*2100
125-145
0-10
5.5
≤3
24.5
2500-4500
4500
Dia.*L (mm)
(t/h)
size(mm)
moisture (%)
speed(r/min)
magnetic
induction(mt)
(kg)
