Aggregate Batching Machine

Aggregate Batching Machine

Production: 30-280 m³/h

Application: Aggregate batching machine widely used to produce various kinds of concrete including quaking concrete and hard concrete, suitable for large or medium scale building works, road and bridge works and precast concrete plants, etc. It is an ideal equipment to produce commercial concrete.

  • MOQ :

    1
inquiry now
Product Details

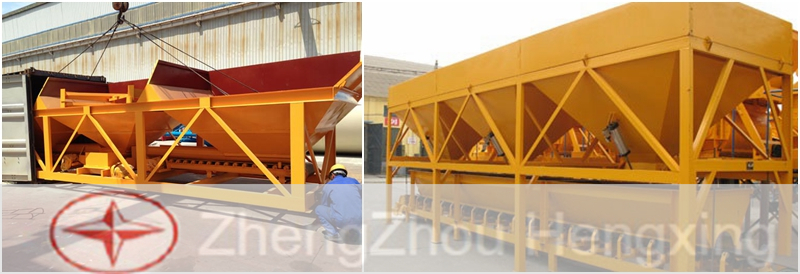

Introduction of aggregate batching machine

The aggregate batching machine is a kind of front-desk automatic batching equipment, working with the mixer. This concrete batching machine can complete automatically the batching process of sand, stone, cement etc. 3~6 kinds of material according to the cement proportion designed by the user.

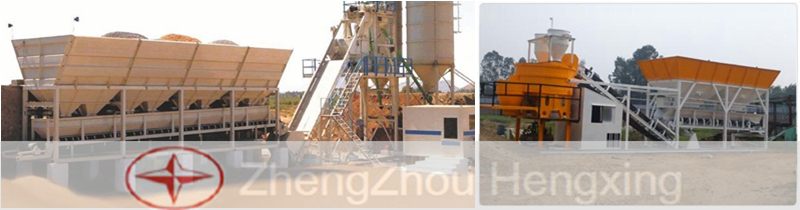

Concrete Batching

Aggregate batching machine is a storage, transportation, and weighing equipment, which deliveries sand and aggregate to concrete mixer after weighing, and then it automatically completes the ingredients program of sand, aggregate, cement, and other materials according to the requirements of concrete ratio.


Our batching machine can mix three or more than three kinds of materials, and it can be used with various types of concrete mixers and other equipment to form fully automatic or semi automatic concrete batching plants. Generally, our batching equipment applicable to different concrete construction sites, such as roads, bridges and other projects.

Mobile Concrete Batching Plant

Features of aggregate batching machine

1. Skip hopper feeding system, cost effective.

2. Adopt twin horizontal shaft forced type concrete mixer, it adopts two heavy duty gear box, electrical lubrication system, hydraulic discharge system, durable mixing device, etc.

3. Excellent environmental protection, dust collection system and anti-noise design.

4. Accurate weighing system (aggregate, cement, water, additive).

5. Strong controlling ability, easy operation.

6. Reasonable design, compact structure and long service life.

Used Concrete Batching Plant

Working principle of aggregate batching machine

Storing system: Our batching equipment is equipped with a number of storage hoppers, which can store sand, aggregate and other raw materials.


Weighing system: It is divided into three parts: aggregate weighing, powder weighing, and liquid weighing. Aggregates mainly include large stones, small stones, sand. Liquid consists of water and liquid admixture. The powder is divided into cement, fly ash and slag.


All materials are weighing at the same time and controlled by the computer. Aggregate weighing can be divided into concentrated weighing and separate weighing.


Whether concentrated weighing or separate weighing, they are adopt electronic scales and microcomputer control, this greatly guarantees the accuracy of weighing.


Feeding system: All aggregates are feeding by belt conveyor, At first, the aggregate is raised to the hopper and then it is put into the concrete mixer. The cement is lifted from the screw conveyor to the concrete mixer.


Electronic control system: It can control the whole operation of cement plant through the electric signal and the button on the control panel.


Technical data

Model

Aggregate
bin (m³)

Cycle
period (s)

Weighing range
and precision

Power
(kw)

Weighing
model

PL800

2×4

40

1500kg±2%

6.6

Electric scale

PL800

3×4

40

1500kg±2%

8.8

Electric scale

PL1200

3×4

40

2300kg±2%

8.8

Electric scale

PL1600

3×6

40

3000kg±2%

8.8

Electric scale

PL2400

4×9

40

4500kg±2%

7.5

Electric scale

PL3200

4×20

40

6000kg±2%

11

Electric scale
