Coal Briquetting Machine
Production: 0.8-15t/h
Roller diameter: 290-1000mm
Application: Coal briquetting machine can be used in metallurgy, chemistry, energy, transportation, heating and other industries.
Processible Materials: Coal power, iron powder, coking coal, aluminum powder, iron slag, oxide scale, carbon powder, slag, gypsum, tailings, sludge, kaolin, clay, activated carbon, coke and waste residue.
MOQ :
1

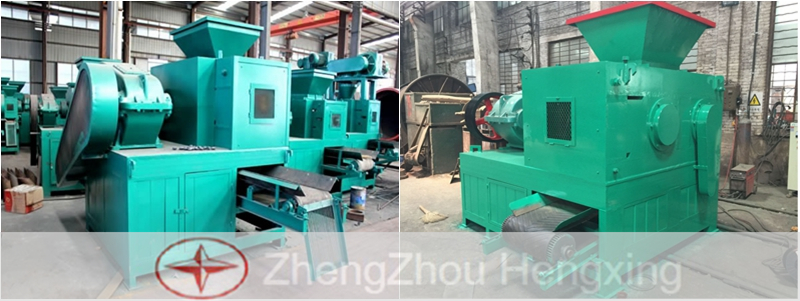

Introduction of Coal Briquetting Machine
The coal briquette press machine, namely the coal briquetting machine, is a kind of coal powder press machine to make raw materials into ball products by adding adhesive, no drying treatment and adopting the low-pressure cold pressing technology.
The character of briquette ball press machine is high molding pressure, main engine revolution adjustable,
Coal Ball Press Machine is mainly used for pressing materials with low water content such as all kinds of coal briquette, ore powder and refractory.
Coal briquette ore powder ball press machine is a new type of briquette machine with high efficiency, energy conservancy, and environmental protection.
Materials after being briquetted by coal briquetting machine is smaller, energy saving, environmentally friendly, easy to transport and improved in wastes recycling rate, which make it have good economic and social benefit.
Features of Coal Briquetting Machine
1. High yield, stable and tremendous pressure.

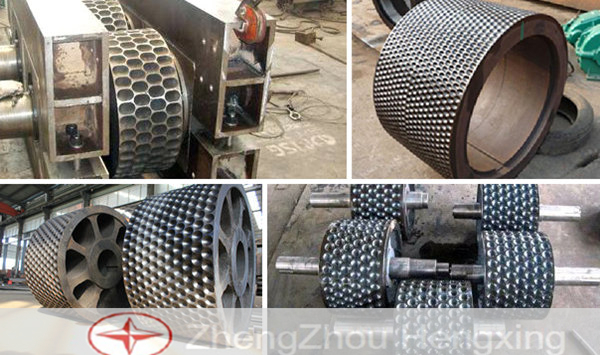

2. The roller skin adopts composite assembly so that it can be changed when abraded.
3. This briquette machine has a shock absorber which can better protect the equipment from the impact of hard materials.
4. The briquette machine is designed with ball bowl adjustable device to make sure the ball bowls of the two rollers are always in the adjustable range.
5. High efficiency and low consumption, a thorough solution to environmental pollution
6. The final products are smokeless, non-toxic, none peculiar and environmental protection.
Working principle of Coal Briquetting Machine
The host gets power from the electromagnetic adjustable speed motor and drives the driving shaft rotating by a reducer. The driving shaft and driven shaft keep synchronization operation.
After the pressed material enters the feeding mouth, it is pressed into the ball under great pressure. At the back of ball press machine, the hydraulic devices are installed, and it can protect the ball press machine from damaging when super hard material enters it.
Technical data
Model |
Decelerator |
Ratio |
Roller size |
Shaft |
Motor |
Capacity |
Dimension |
HX360-4 |
ZQ350 |
1:31.5 |
Ф360×250 |
15-17 |
7.5 |
3-5 |
2.26×1.53×1.98 |
HX360-2 |
ZQ350 |
1:31.5 |
Ф360×250 |
15-17 |
7.5 |
3-5 |
2.26×1.53×1.76 |
HX400-4 |
ZQ400 |
1:31.5 |
Ф400×250 |
15-17 |
11 |
4-7 |
2.3×1.38×1.96 |
HX400-2 |
ZQ400 |
1:31.5 |
Ф400×250 |
15-17 |
7.5 |
4-7 |
2.2×1.38×1.91 |
HX430-4 |
ZQ400 |
1:31.5 |
Ф430×250 |
15-17 |
11 |
5-8 |
2.4×1.53×2 |
HX430-2 |
ZQ400 |
1:31.5 |
Ф430×250 |
15-17 |
7.5 |
5-8 |
2.3×1.53×1.9 |
HX500-4 |
ZQ500 |
1:31.5 |
Ф500×350 |
15-17 |
22 |
8-10 |
2.61×1.75×2.35 |
HX400-2 |
ZQ500 |
1:31.5 |
Ф500×350 |
15-17 |
15 |
8-10 |
2.61×1.75×2.1 |
HX650-4 |
ZQ650 |
1:31.5 |
Ф650×350 |
15-17 |
30 |
12-20 |
3.42×2×2.4 |
HX650-2 |
ZQ650 |
1:31.5 |
Ф650×350 |
15-17 |
22 |
12-20 |
3.42×2×2.2 |
HX750-2 |
ZQ750 |
1:31.5 |
Ф750×380 |
15-17 |
30/4 |
25-30 |
3.7×2.55×2.6 |
HX850-2 |
ZQ850 |
1:31.5 |
Ф850×436 |
15-17 |
37/4 |
35-40 |
3.9×2.6×2.7 |
HX1000-2 |
ZQ1000 |
1:31.5 |
Ф1000×530 |
15-17 |
45/4 |
40-45 |
4×2.8×2.8 |
