Ceramic Sand Granulator
Diameter: 600-4200mm
Application: widely used in building materials, gardening, refractory insulation materials, Chemical, oil, and other departments.
Processible Materials: Bauxite, shale, clay, sludge, fly ash, coal gangue, slag, etc.
MOQ :
1

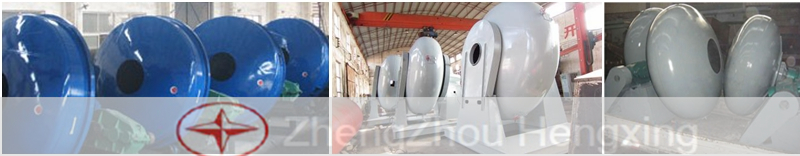

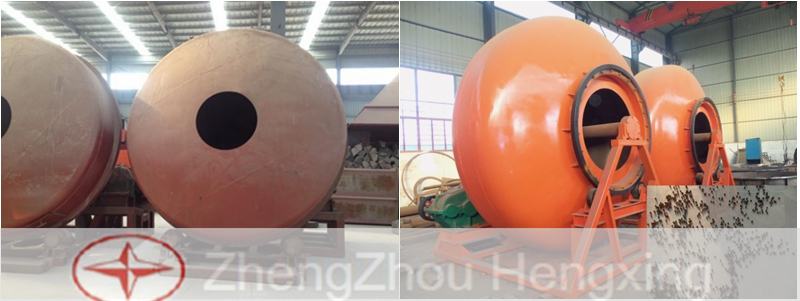

Introduction of ceramic sand granulator

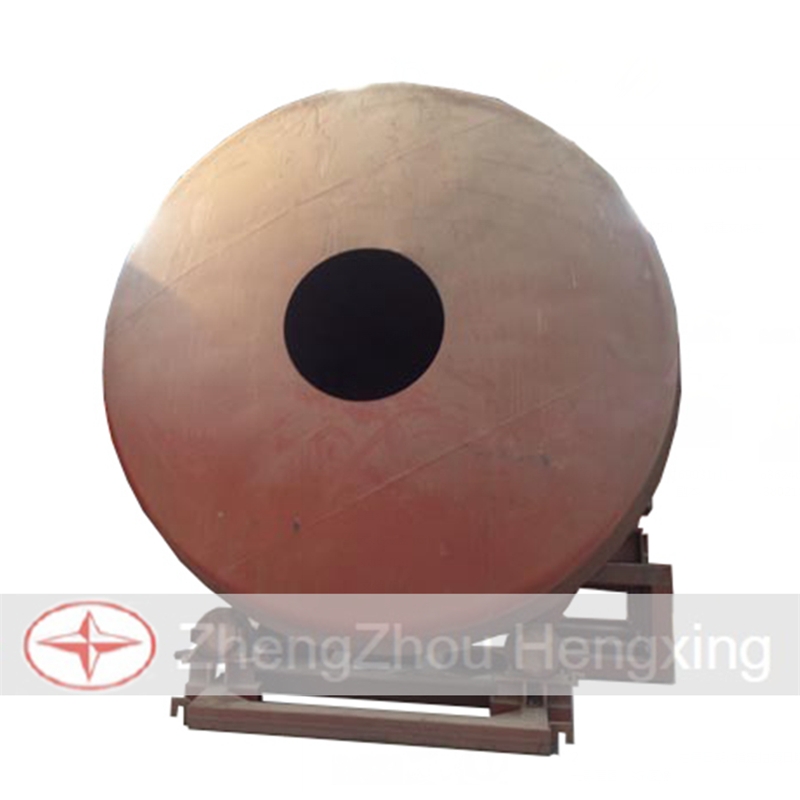

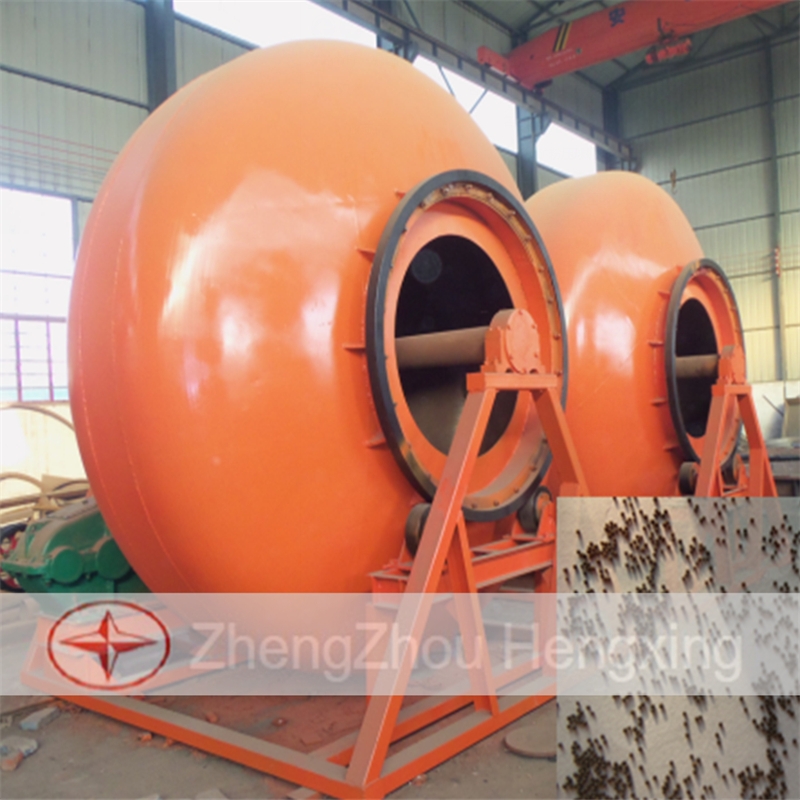

Ceramic sand granulator is also called ceramic sand disk granulator. It is mainly made of by disk, big gamp gear, cone gear, spindle head, the lateral axis, slope adjusting device, scraper device, transmission device, the lampstand and so on.
Granulator is a kind of pelletizing equipment for bauxite, shale, clay, sludge, fly ash, coal gangue, slag, etc. It is key pelletizing equipment for power type materials.
This machine can produce petroleum proppant, construction ceramsite, clay ceramsite, high strength ceramsite, flowers ceramsite, refractory ceramsite, etc.
Features of ceramic sand granulator
1. Short process, equipment, small footprint, saving the plant area.
2. The balls are easy to control grain size, uniform size, strength, and overall a ball, a substantial increase in production efficiency.
3. The use of frequency control, easing the impact of the device, smooth operation, to protect the motor and reduce energy consumption by 30% or more.
4. Production system fully enclosed, dust pollution, low noise
5. With raw material adaptability, high production efficiency, high product quality.
6. Simple structure, easy maintenance, low energy consumption, low noise, increase equipment service life.
Working principle of ceramic sand granulator
Motor by a V-belt drive and reducer coupling, reducer shaft opening associated conical gear and bevel gear meshing with the large. Large bevel gear connected by bolts and disc. After this motor starts, the disc also will be running.
When add the mixture of scroll within the pelletizer, tiny droplets of water and wine on the mixture, particles in water droplets, rapid infiltration, adsorption particles surface forming a thin layer of water film, and adsorption material in the scroll. Due to the water surface tension and viscosity, the bond formed by the small balls of nuclear - cue ball, the cue ball generally is about 3 mm in diameter, the size of the surface of a thin water film this is when scrolling moisture in offshoring gradually formed under the action of centrifugal force and gravity.
Due to the continuous water, feeding and continuous rolling cue ball in the dish, water film on the surface of the cue ball also unceasingly absorb water, so the cycle cue ball ball gradually formed. Rolling at the same time, due to mechanical action, the density of material ball also gradually to increase, coupled with the clay-bonded effect, make the ball produce certain mechanical strength, until the raw meal ball form to meet the requirements.
Technical data
Model
Dia.
Pot depth
Main shaft
Power
Volume
Capacity
φ
600
600
300
28-34
1.1
0.065
50
φ
800
800
400
28-34
1.5
0.15
120
φ1000
1000
500
28-34
2.2
0.28
200
φ
1200
1200
600
25
3
0.49
400
φ
1500
1500
700
18
5.5
0.94
800
φ
1800
1800
850
15
7.5
1.86
1500
φ
2200
2200
1000
15
15
2.91
2500
φ
2500
2500
1200
15
22
4.25
3600
φ
3000
3000
1400
13
37
7.29
6000
φ
3600
3600
1680
10
55
11.5
9000
φ
4200
4200
1800
9
75
15.5
12500
(mm)
(mm)
speed(r/min)
(kw)
(m³)
(kg)
