Desulfurization Gypsum Ball Press Machine Desulfurization Gypsum Ball Press Machine

Desulfurization Gypsum Ball Press Machine

Production: 0.8-15t/h

Processible Materials: Desulfurization Gypsum, Coal, gypsum, limestone, charcoal, slag, iron, aluminum, blue carbon, powder, kaolin, clay, etc.


  • MOQ :

    1
inquiry now
Product Details

Introduction of desulfurization gypsum Ball press machine

Gypsum Ball Press Machine is also called desulfurization gypsum briquetting machine not only can be used to suppress gypsum but can also be used to suppress iron powder, aluminum powder, slag, tailings, etc. Gypsum Ball Press Machine featuring high density, high efficiency yet low power consumption and maintenance costs. The pressed briquettes can easily drop from the mould.

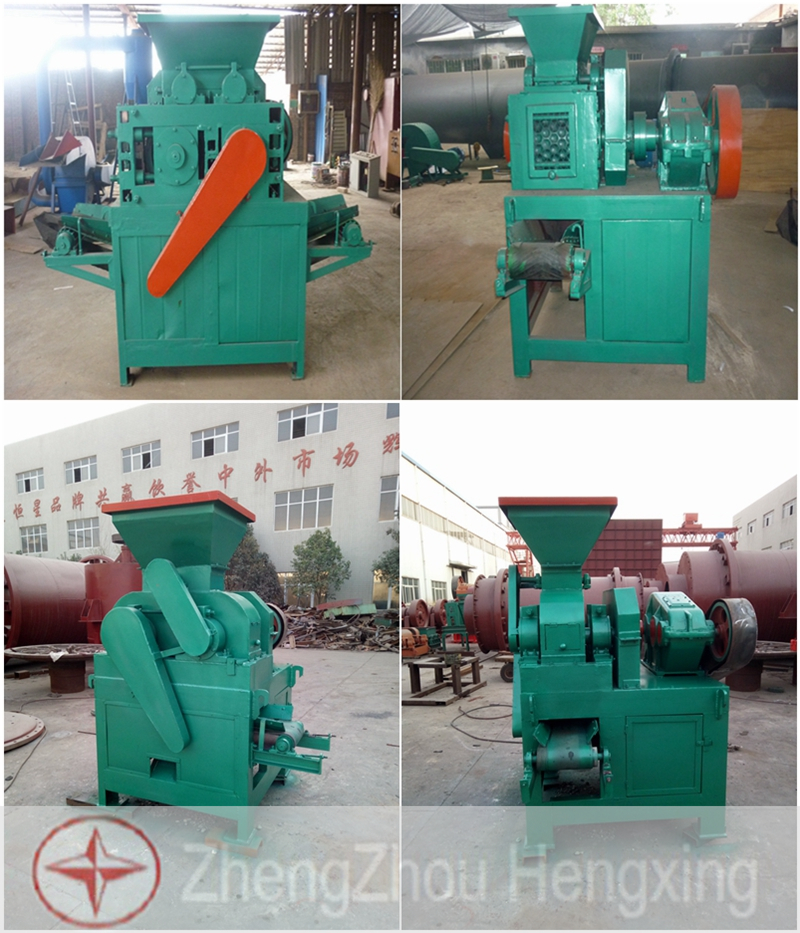

Ball Press Machine

The desulfurization gypsum ball press machine with features of both high yield and high briquetting rate about 90% can compress desulfurization gypsum powder into one-time ball products with strong hardness without any help of adhesives. These products won't be broken easily during the transportation process and they will be used as the cement retarder to replace the natural gypsum.


Desulfurization gypsum containing much water content is usually in powder or particle shape, it is very inconvenient to transport. Desulfurization gypsum briquette machine can solve this problem perfectly because it is specifically designed for pressing desulfurization gypsum to be more convenient for transportation, storage, and application.

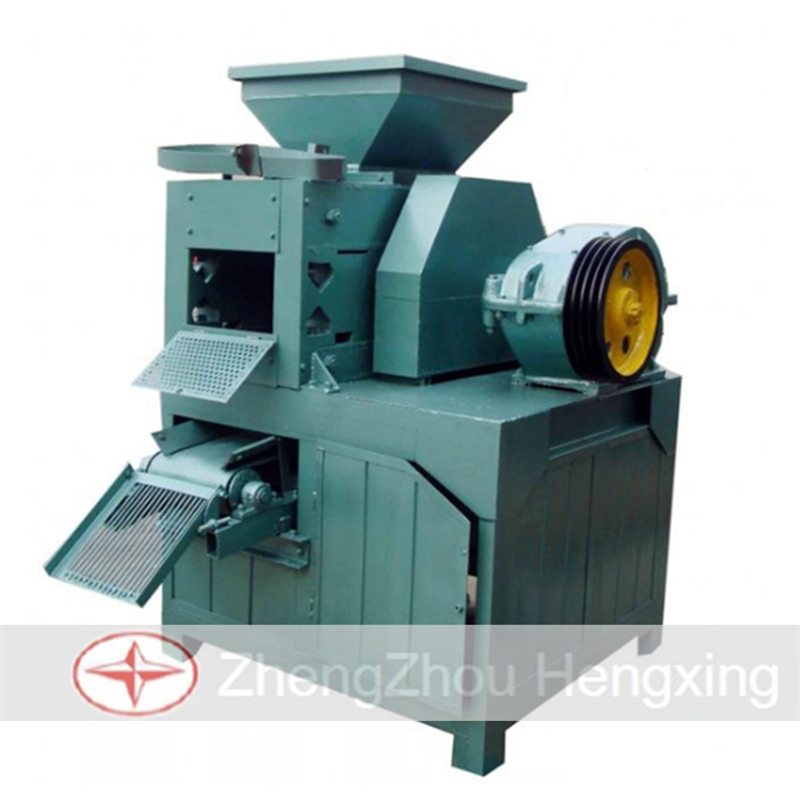

Briquetting Plant Machine

Features of desulfurization gypsum briquette machine

1. Briquette machine with single machine to form a molding

2. Processing and utilization of desulfurization gypsum can reduce industrial waste emission thus protecting the environment

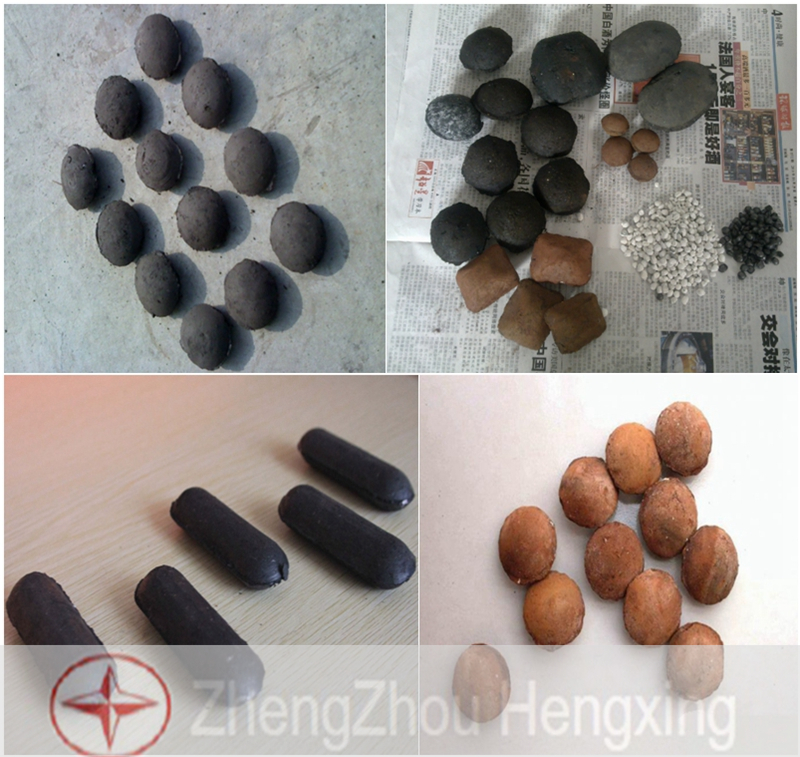

3. The final briquettes can be designed with different shapes of oval shape, egg shape, pillow shape, square shape etc.

4. Simple structure and short technical process,  the surface of the steel plate is painted with four layers of lacquer, making sure the equipment is durable.

5. Large briquette ratio, demoulding smoothly, easy maintenance of briquette machine

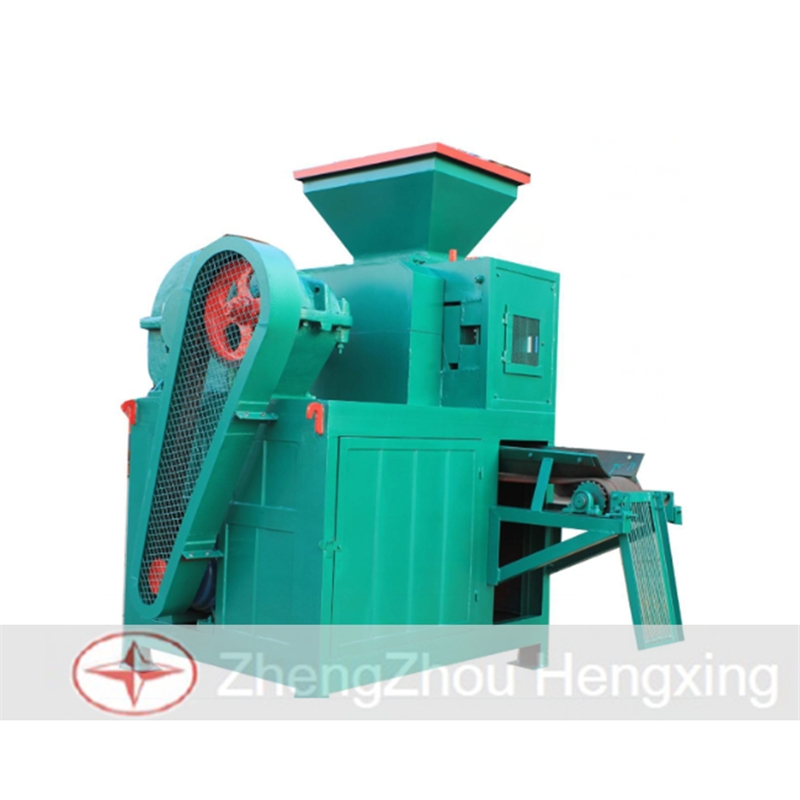

Briquetting Machine Price

Working principle of phosphogypsum briquetting machine

Material evenly goes into the hopper of molding machine from the storage bin and by the quantitative equipment, and material evenly enters the middle of the roller through the adjusting of adjustment gate on the hopper. Twin-roller has the same rotation speed and direction.


When the materials fall into the space between two rollers and bear strong extrusion from pressure, pressure changes from small to big, and the molding pressure reaches its peak in the attachment of roller center, after material passes the line, the molding pressure decreases rapidly to make material enter into the ball-dropping state and take off the ball smoothly.


Technical data

Model

Roll dia.
(mm)

Roll width
(mm)

Total pressure
(t)

Main motor power (kw)

Output
(t)

Weight
(t)

GY520-150

520

196

150

55

2.2-3.5

13

GY650-220

650

200

220

110

4-6.5

19.2

GY750-300

750

280

300

185

6-8.5

34

GY1000-350

1000

440

350

250

10-15

50.8

GY1000-450

1000

504

450

280

14-17

58.5

GY1000-500

1000

504

500

315

15-20

58.5

GYS1000-500

1000

600

500

280

17-21

56.5

GY1000-540

1000

900

540

185kw×2

30-35

60

GY1200-800

1200

900

800

280kw×2

40

110

GY1400-1000

1400

1000

1000

400kw×2

50

156
