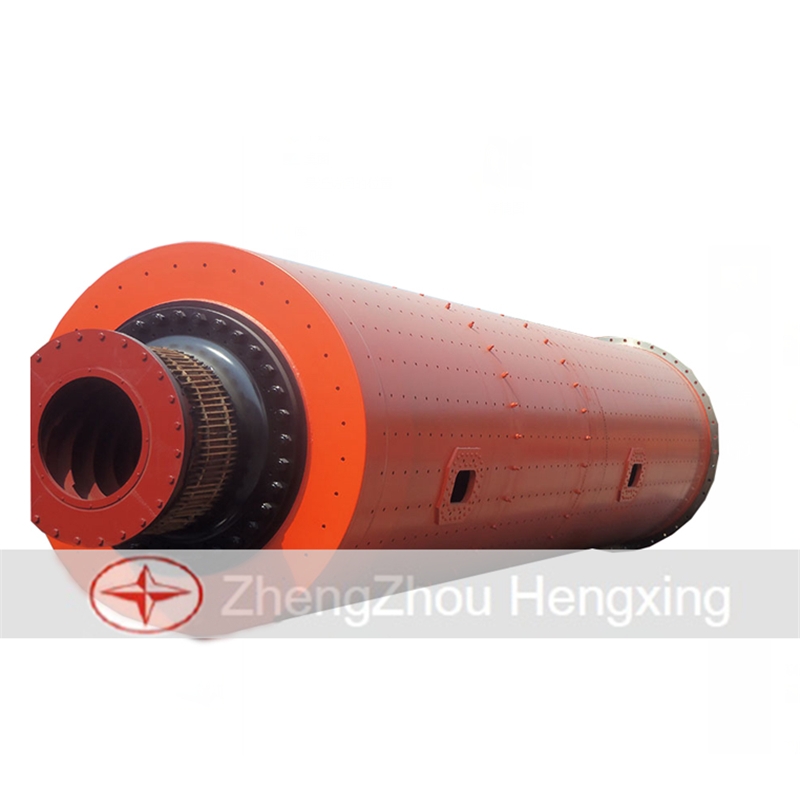

Raw Material Mill
Production: 6.5-135t/h
Specification: φ1.83×7～φ4.6×14m
Application: Widely used in cement, silicate products, new building materials, refractory, glass, ceramic and other production industries.
Processible Materials: Coal, cement, stone, sand, clay, and ore.
MOQ :
1

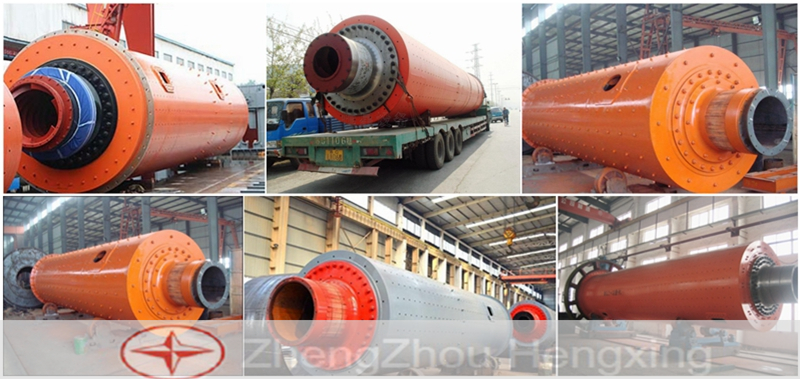

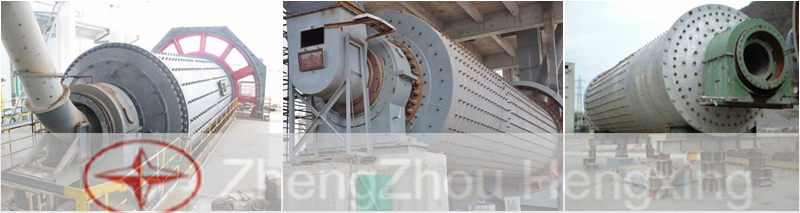

Introduction of raw material mill
Raw mill is mainly used in grinding raw materials and end products in cement plant. It is also suitable for various ores and other materials metallurgy, mine, chemical, and construction. Besides, it has two forms of milling, one is an open form, and the other is a recycle close form equipped with powder concentrator. It is widely applied in many industries and has a convenient operation.
And it can be applied to the open flow grinding and cycle circuit grinding composed of power concentrator as well. The transmission type of the raw material mill is rim drive, which is compact structure and small footprint and thus greatly saves the user investment.
Features of raw material mill
1. The unique streamlined design reduces ventilation resistance, expands effective volume and improves the yield of the mill. The final products are discharged smoothly.
2. Different lining structures in different stages of the mill, which improves the grinding efficiency obviously.
3. Negative working pressure to effectively avoid the powder leakage phenomenon.
4. Heat preserving method, so the material drying degree can reach 6%-8%.
5. Easy to adjust the output product's size.
Technical data
Specification
Milling
Transmission
Gear box
Motor
Production
capacity (t/h)
Total
Model
Speed
Φ1.5×5.7
Open flow
Brim
ZD40
3.55
130
4.5-6
25.8
Φ1.83×6.4
Open flow
Brim
ZD60
4.5
210
7.5-15
43
Φ2.2×6.5
Circle flow
Brim
ZD70
5
380
14-26
60
Φ2.4×7
Circle flow
Brim
ZD70
5
475
24-28
81
Φ2.4×10
Circle flow
Brim
ZD80-4-Ⅱ
6.435
570
32-36
118
Φ2.6×10
Circle flow
Brim
JDX710
6.3
800
45-50
130
Φ3×9
Open flow
Brim
JDX800
6.3
1000
55-60
158
Φ3.2×9
Circle flow
Brim
MBY900
7.1
1250
62-65
195
Φ3.5×10
Open flow
Brim
JDX900
5.84
1250
70-75
200
Φ3.8×7.5
Circle flow
Brim
JDX900
5.6
1600
80
233
Φ4.6×10+3.5
Circle flow
Central shaft
JQS3550
15.1
3550
190
415
Φ4.6×10.5+3.5
Circle flow
Central shaft
JQS3550
15.1
3550
210
476
(m)
form
form
power (kw)
weight (t)
reduction ratio
