Rotary Cooler

Rotary Cooler

Production: 2-36 t/h

Application: The cooling machine is used for cooling materials like, cement, dolomite, active lime, cement clinker, and other mine powder.

Processible Materials: Cement, dolomite, active lime, cement clinker, and bauxite.


  • MOQ :

    1
inquiry now
Product Details

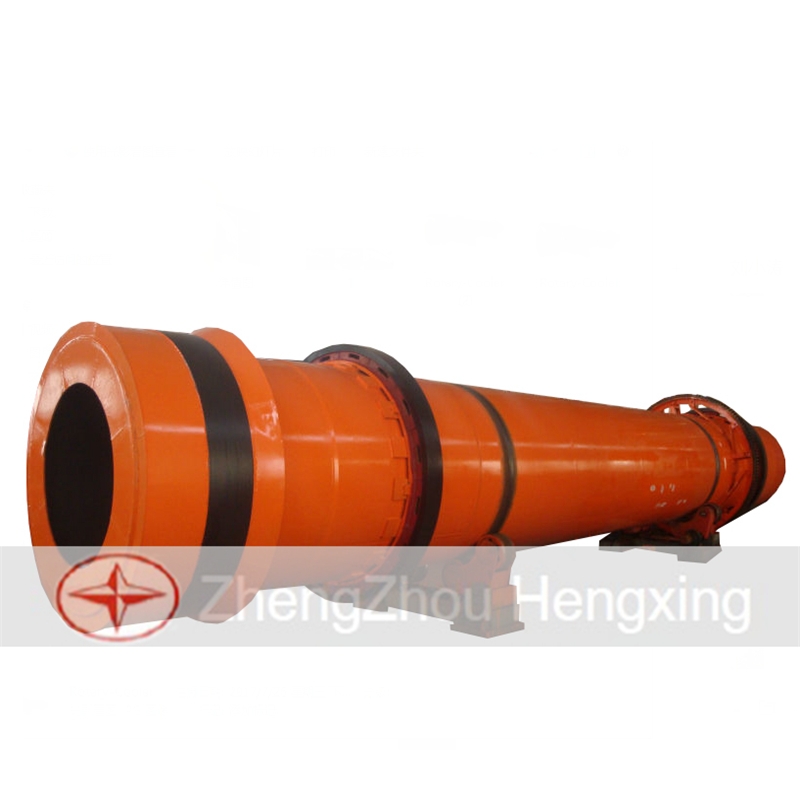

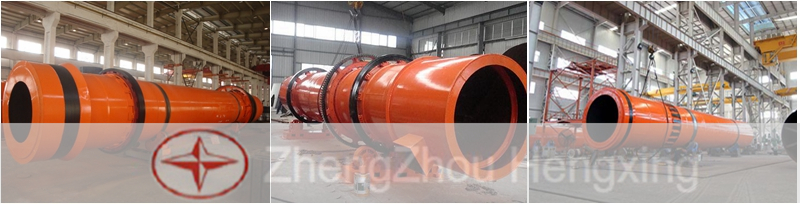

Introduction of rotary cooler

The cooling machine is a kind of heat exchange device of the rotary kiln production system, which is mainly used for the fine chemical cooling of slag, limestone, coal, and clay in building materials, metallurgy, chemical industry, and cement industry.


Rotary cooler can also be used for the compound fertilizer production line. Drum cooler has the advantages of simple structure, stable performance, and reliable operation. The exchanged heat can enter into the rotary kiln to improve the thermal efficiency of the whole system.


The industrial cooling machine can be divided into two types according to the different cooling methods: the cylinder cooling machine and grate cooling machine, wherein the cylinder cooling machine can be divided into single cylinder cooling machine and multi-cylinder cooling machine.

Sand Cooling Machine

Features of rotary cooler

1. Fast cooling speed, reduce labor intensity and improve the yield.

2. Strong applicability. It can cool powder and granular materials.

3. Compact structure, high cooling efficiency, reliable performance.

4. Reasonable design. The advanced design of shovel plate and other parts improves cooling rate over 20% than the common cooler.

5. This rotary cooling machine uses high-quality anti-corrosion and wear-resistant materials which greatly improve the service life of the machine.

6. More flexible arrangement. The rotating speed of the cylinder can be adjusted according to your requirement. And the cooler itself can be customized too.


Technical data

Spec./m
(Dia. × Length)(m)

RPM(r/min)

Capacity
(t/h)

Installation
Obliquity (%)

Reduction ratio

Main Motor
(kw)

Weight
(t)

Φ 1x15

11.8

5

5

25

7.5

9.8

Φ 1.2x12

13.57

5

5

31.5

11

10.5

Φ 1.2x15

17

4-5

5

31.5

15

12.9

Φ 1.2x20

22.6

4-5

5

31.5

15

16.8

Φ 1.5x10

17.67

3-5

5

31.5

15

16.5

Φ1.5×14

24.9

3-5

5

31.5

15

19.3

Φ 1.5x18

31.8

3-5

5

31.5

18.5

22.9

Φ1.5×20

35.3

3-5

5

31.5

18.5

25.6

Φ1.8×16

30.5

3-5

4

31.5

22

35.6

Φ1.8×18

45.5

3-5

4

31.5

22

32.5

Φ2.0×16

50.9

3-5

4

31.5

22

39.6

Φ2.0×20

50.3

3-5

3.5

31.5

22

39.8

Φ2.0×22

62.8

3-5

3.5

31.5

30

42.9

Φ2.2×22

3.44

5.5-7.5

4

31.5

30

45

Φ2.2×25

3.37

8-10

4

31.5

45

59

Φ 2.4x24

3.37

9-11

4

63.13

45

68

Φ2.5×30

3.37

11-13

4

23.34

55

125.7

Φ2.8×20

3.37

12-14

4

31.5

45

111

Φ2.8×28

3.37

15-18

4

31.5

55

131

Φ3.0×30

3.28

18-20

4

35.5

75

169

Φ3.0×32

3.28

19-23

4

35.66

90

182

Φ3.2×32

3.22

22-25

4

35.66

110

197

Φ3.2×36

3.22

25-29

4

32.11

132

200

Φ3.3×40

3.22

26-33

4

32.11

160

236.6

Φ3.5×36

3.22

30-35

4

32.11

185

256.7
