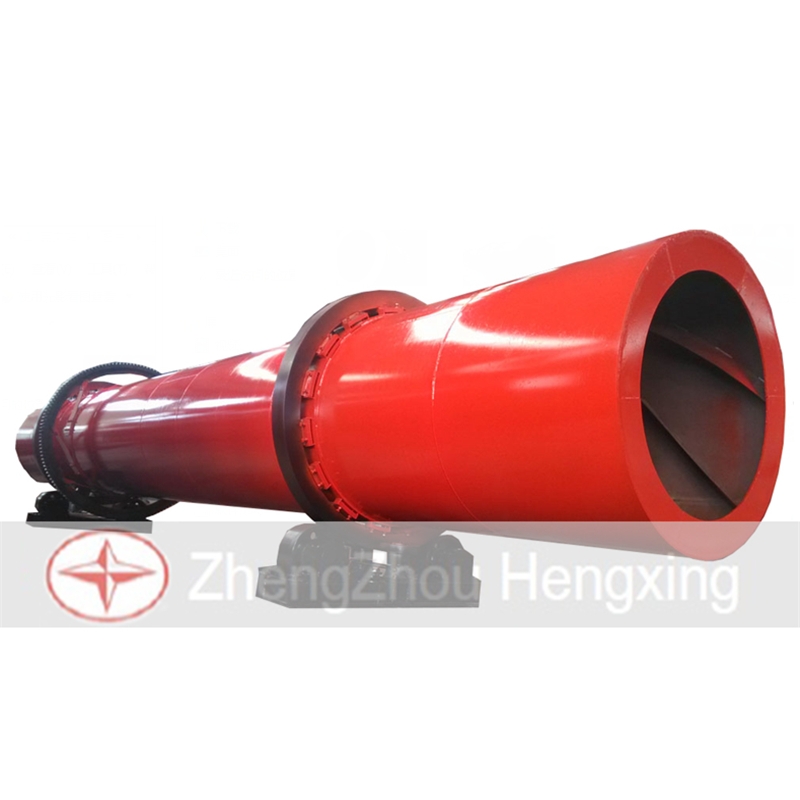

Rotary Sand Dryer
Production: 0.5-50 t/h
Main motor power: 7.5-160kw
Application: Rotary dryer machine is mainly used in the fields of building materials, mineral processing, metallurgy, chemical industry, etc., it can be used to dry materials with specified moisture.
Processible Materials: limestone, fly ash, coal powder, slag, clay.
MOQ :
1

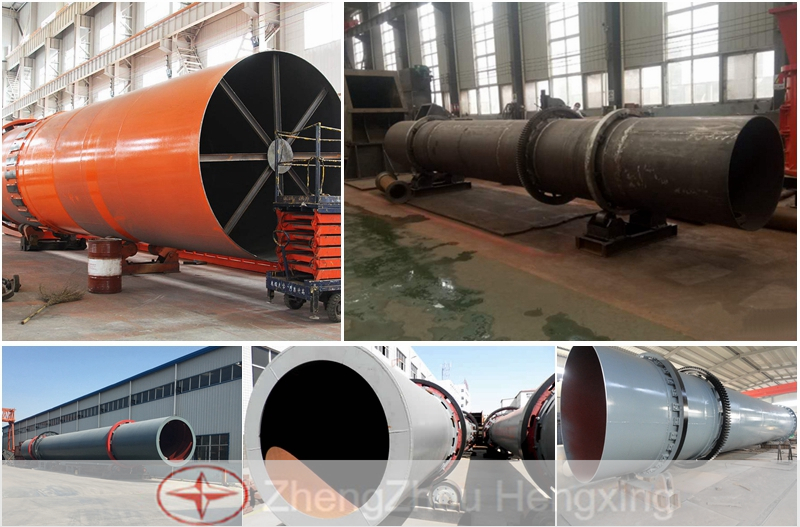

Introduction of rotary sand dryer
Rotary dryer machine is divided into many types, for example, limestone dryer, roller dryer, rotary drum dryer and spray dryer.
Rotary drum dryer is strong adaptability to materials and can be used to dry all kinds of materials. This equipment is applied to cement plant for drying limestone, clay, coal powder and mixed materials and also used in metallurgy, mining, electricity, chemical industry and other sectors.
Rotary drum dryer is the most commonly used drying equipment in cement plant. It has many advantages such as sample and reliable operation, excellent dust prevention, good sealing effect and convenient maintenance.
Features of rotary sand dryer
1. High drying strength, wide applicability, available for many kinds of materials.
2. Short drying time, high processing quantity and high heating efficiency.
3. Simple structure, stable performance, easy to operate and maintain.
4. The rotary dryer can control the temperature of the barrel.
5. Small abrasion wear during movement, long working lifetime.
Working principle of sand rotary dryer
Rotary dryer is made up of the cylinder, lifting plate, transmission, supporting devices and others.
The wet materials are transported into the material hopper by the belt conveyor and bucket elevator and get into the feeding terminal through feeding pipe with the aid of feeder of the material hopper. The pitch of the feeding pipe should be higher than material pitch.
Since the dryer is put slantly, along with the revolving of the cylinder, the materials move to the lower terminal due to the gravity. When the wet materials move forward, it receives the heat from the heat carrier directly or indirectly. Heat turns water into steam letting into the air, and aimed dry material is achieved.
Technical data
Shell diameter
Inside
Inside
Shell
Shell
Shell
Lifting
Highest
Dimensions
Φ1.5×15m
1500
500
15
20.27
3-5%
Lifting
form
850
16.2×2.7×2.7
Φ1.5×17m
17
22.97
18.2×2.7×2.7
Φ1.5×19m
19
25.68
20.0×2.9×2.9
Φ1.8×21m
1800
650
21
35.91
3-5%
Lifting
form
850
22.5×2.7×2.7
Φ1.8×23m
23
39.33
24.5×2.9×2.9
Φ1.8×25m
25
42.75
26.5×2.9×2.9
Φ2.2×21m
2200
800
21
58.10
3-5%
Lifting form
850
----
Φ2.2×23m
23
63.61
Φ2.2×25m
×shell Length
diameter
of outer shell
(mm)
diameter
of inner shell
(mm)
Length
(m)
cubage
(m³)
obliquity
blade
form
inlet air
temperature
(℃)
(m)
