Heavy Hammer Crusher

Heavy Hammer Crusher

Feed opening:1500-1400 mm

Feeding size:600 - 1200 mm

Production: 100-2500t/h

Application: Sand and gravel field, mining, coal mining, concrete mixing plant, dry mortar, power plant desulfurization, quartz sand and so on.

Processible Materials: Coal, salt,  gypsum, alums, brick, copper ore, quartz stone, limestone, coal, coal gangue, river pebbles and so on.

  • Brand:

    Hengxing
  • MOQ :

    1
inquiry now
Product Details

Introduction of heavy hammer crusher

Heavy hammer crusher is used for crushing a variety of medium hardness and brittle materials which compression strength not exceeding 150 MPa, such as limestone, coal and other materials.

Aggregate Crushing

Mainly used in cement, mining, coal preparation, power generation, chemical and building materials industry. The material can be adjusted according to demand, rough, medium and small, complete specifications; multi-angle multi-edge to ensure compression strength. Especially suitable for highways, construction, and large-scale engineering materials.


It is called as reversible no-grate hammer crusher because its rotor is reversible without a grate. It solves the problem of crusher being blocked by wet material, improves hammer utilization ratio, reduces the frequency of hammer change and ensures uniform granularity of discharged material.


Features of havey hammer stone crusher:


1. The heavy hammer crusher (boulder broken) with a large feed size, high yield, low energy consumption, simple structure, easy maintenance.

2. PCZ-type heavy hammer crusher broken stone, a molding, without more crushing process, you can reduce the cost of about 40%, low energy consumption, less investment. Compared with the same output of the jaw crusher, can reduce the investment in equipment, with less investment fast.

3. The heavy hammer crusher with no grate design, for wet materials, soil and more broken raw materials, eliminating the clogging of the adhesion of the suffering.

4. The heavy hammer crusher with alloy composite hammer, reducing the consumption of wear parts, long service life reducing the production cost of about 35%

5. Compact structure, less wearing parts, easy maintenance, etc.

6. Hammer broken seal body structure to solve the crushing plant dust pollution and dust leakage problem.


Working principle of heavy hammer crushers:

The heavy crusher uses impact force to crush materials. The motor drives the rotor rotating at high speed in the crushing cavity.  Materials enter into the hammer crusher through the upper feed opening, crushed after being hit, impacted, sheared and grinded by rotating hammers.

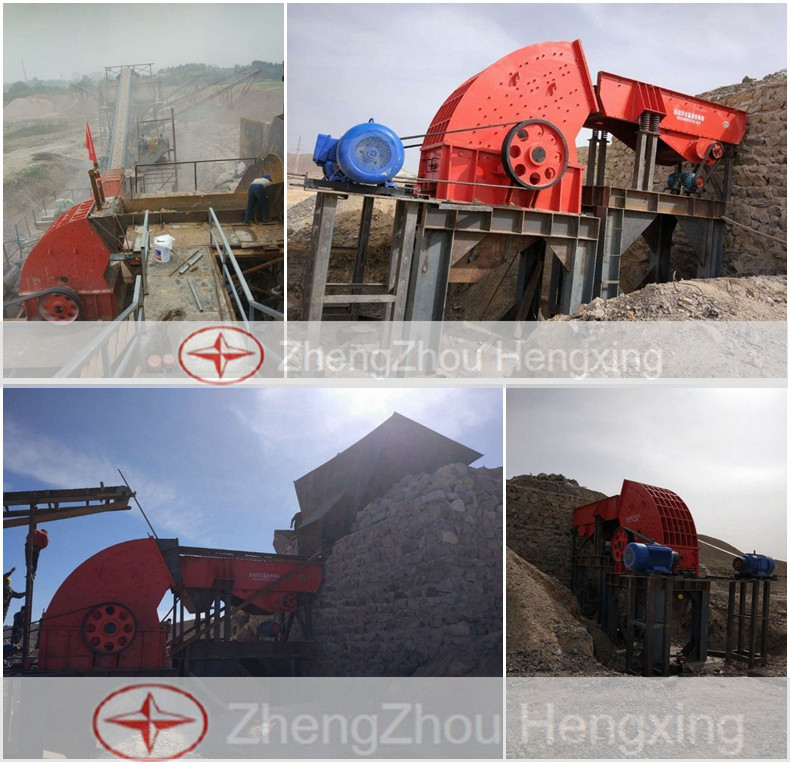

Rock Crushing Plant

Beneath the rotor, there is a sieve plate, and the crushed materials with size smaller than the sieve size will be discharged by the sieve plate. Meanwhile, the coarse grains with the size larger than the mesh continue to stay on the screen plate and be repeatedly impacted and grinded by the hammer continuously, finally discharged through the sieve.


Technical data

Model

Rotor
(Dia.*L mm)

Feed opening
 (mm)

Output size
 (mm)

Capacity
 (t/h)

Motor
Power (kw)

Weight
 (t)

Dimension
mm

PCZ-1308

1310*790

850*800

30

100-160

132

15.6

2818*2100*2390

PCZ-1510

1500*950

1000*850

30

160-210

132*2

17.1

3260*2370*2750

PCZ-1512

1500*1160

1210*900

30

220-270

160*2

18.9

3260*2580*2750

PCZ-1615

1650*1452

1500*1200

30

360-420

200*2

28

3456*2915*3185

PCZ-2015

2000*1500

1500*1400

30

450-500

250*2

56

3880*2990*3560
