VSI Sand Maker

VSI Sand Maker

Diameter: 240–850 mm

Feeding size: ≤60mm

Production: 12-360t/h

Application: All kinds of rocks, abrasives, refractoriness, cement clinker, quartz stone, iron ore, concrete aggregate.

Processible Materials: Pebbles, granite, basalt, iron ore, limestone, dolomite, bluestone, calcite, quartz stone, diabase, cement clinker, concrete, bauxite and so on.



  • Brand:

    Hengxing
  • MOQ :

    1
inquiry now
Product Details

Introduction of VSI Sand Maker

VSI series high-efficiency vertical shaft impact crusher is commonly known as sand maker and shaper. Vertical shaft impact crusher is, and so on material with features of very hard and anticorrosion.

Sand Crusher Machine Price

And Sand Making Machine is more productive than other kinds of crushers. It is a type of sand crusher suitable for the crushing of soft, hard and extremely hard materials.


It is widely used for artificial sand, in metal and non-metal ores, cement, refractory material, bauxite, silicon carbide, glass material, building material.


Features of Sand Making Machine:

1. Simple structure and low operating cost, smooth main unit running, and long service time.

2. Equipment made of special hard wear-resistant material, small size, light weight, easy to replace parts

3. Safe and environmentally friendly, less dust&noise, durable.

4. High efficiency and low consumption, has the function of fine crush and crude grinding

5. VSI Sand making machine is more suitable for crushing hard, extra-hard materials.

6. Easy to operate, easy installation and maintenance

7. Multi-stage, continuity, good particle shape and low elongated material content.

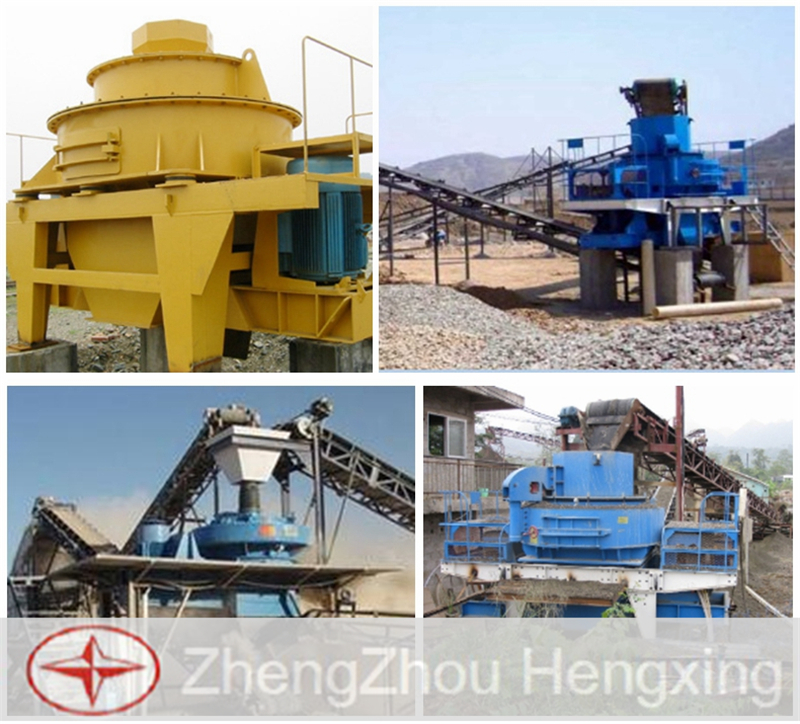

vertical shaft crusher

Working principle of Sand Maker:

The material is vertically fell to the impeller of the sand crusher, the material will be divided into two parts by the feeder, part of the middle of the feeder into the high-speed rotation of the impeller, and then combines with another part under the effect of centrifugal force with a high speed, which is in the shape of umbrella form shunt around the impeller material, and a powerful vortex can be formed between the impeller and the casing, which can be repeated again and again until the material can be crushed to the final result product.


Technical data


Model

VSI7611

VSI8518

VSI9526

VSI1140

VSI1145

Capacity
(t/h)

Center and
Ring feeding

120-180

200-260

300-380

450-520

500-600

Center feeding

60-90

100-130

150-190

225-260

250-360

Max Feed
 Size (mm)

Soft material

<35

<40

<45

<50

<50

Hard material

<30

<35

<40

<45

<45

Rotation
speed (r/min)

1700-1890

1520-1690

1360-1510

1180-1310

1100-1310

Power for double
motor (kw)

2*55

2*90

2*132

2*200

2*220

Overall Dimension
L×W×H (mm)

3600x2248x2533

4378×2350×2667

4678×2350×2667

5570×2900×3000

5100x2790x3320

Weight (t)

10

12

16

25.6

27.5

Power Source

380v 50Hz

Vibrating Sensor

Inspect scope: 0.1-20mm/s adjusted continuously

Lubrication
station

Power for
 double oil
 pump

2×0.31kW

Safety

To make sure that the supply of the oil with double oil pump; stop working without oil or hydraulic pressure; temperature falls when the water cools; start the motor by heating it in winter.

Power for oil
 box heater

2 kW
