Box Feeder

Box Feeder

Production: 0-40t/h

Application: Brick making production line, briquetting/ball press production line.

Processible Materials: Clay, sludge, fly ash, cement, coal gangue, slag, etc.

  • MOQ :

    1
inquiry now
Product Details

Introduction of box feeder

Designed for continuous controlled dosing and storage of material. Box feeders are mainly used for handling wet material.


By adjusting the height of flash-board and the speed of conveyor belt, it will control the quantity of feed-in raw materials, balance plug and internal combustion material proportionally, and crush the large soft mud.


These box feeders are widely used not only in the ceramics industry but also in the chemicals and minerals sectors.

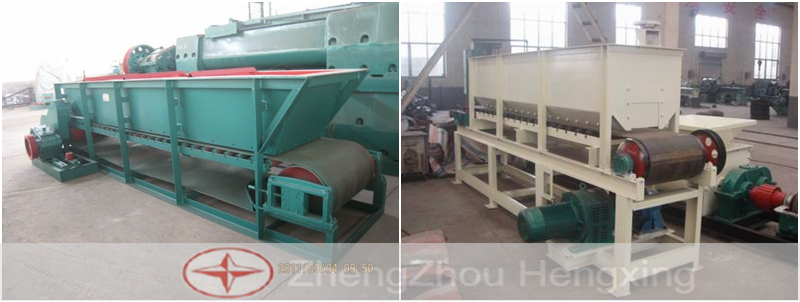

Clay Box Feeder

Features of box feeder

1. Belt type feeder suits the soft material, such as clay, mud, soil and fly ash.

2. With three functions:  mixing, storage, and feeding.

3. High quality steel with higher bearing capacity.

4. Extraordinary reliability, more durable, bearing service life longer.

5. Easy installation, high transmission efficiency, stable operation, low noise, long service life.

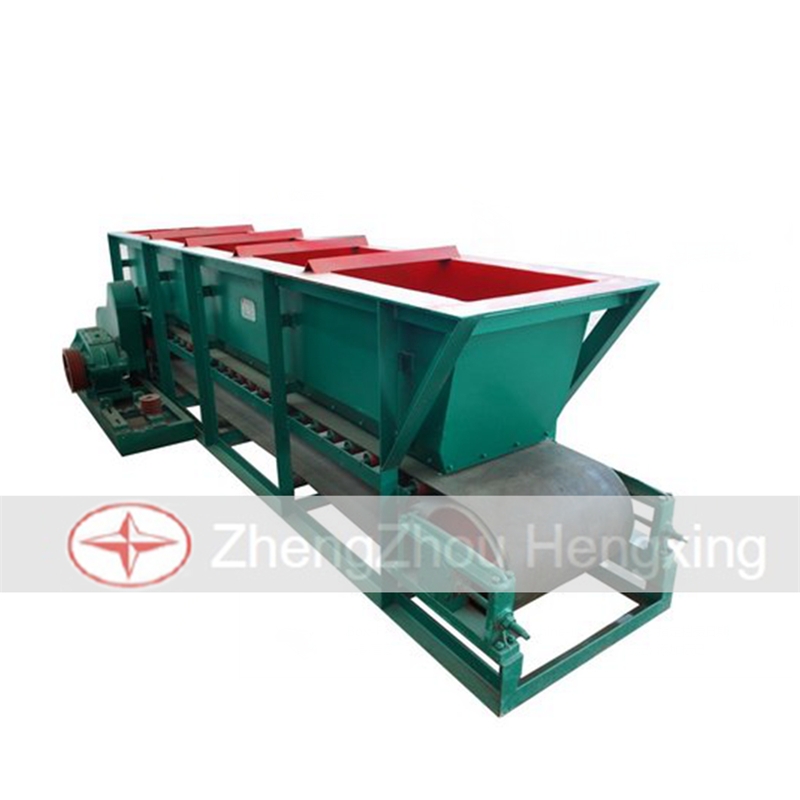

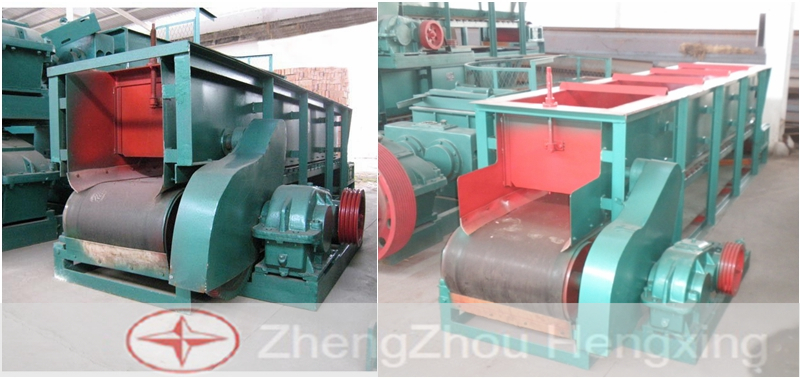

Clay Brick Machine Conveyor Belt Box Feeder

Technical data

Model

Capacity

Powerkw

Decelerator

Dimensionmm

500

0-20

5.5

ZQ350

3700*1260*1400

650

0-30

7.5

ZQ400

4200*1300*1600

800

0-40

11

ZQ500

4700*1470*1800
