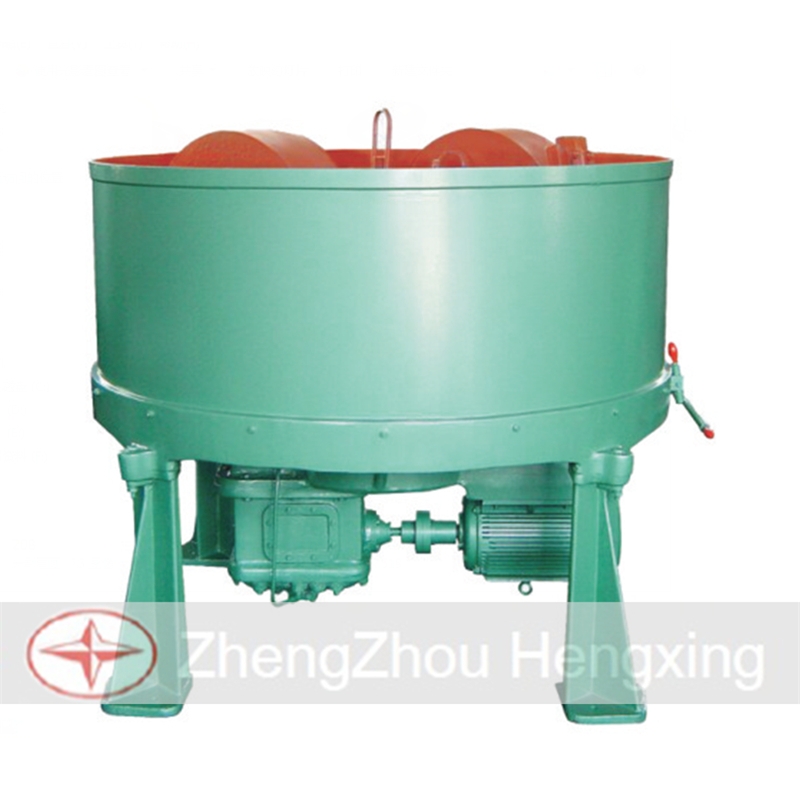

Pan Mixer Machine
Production: 1~20 t/h
Application: Highways, power station, dam construction, building sites, roads, bridge, water-power projects, large and middle prefabricated concrete mixing plants.
Processible Materials: Cement, lime, raw meal, apatite, urea, fly ash, gypsum etc.
MOQ :
1

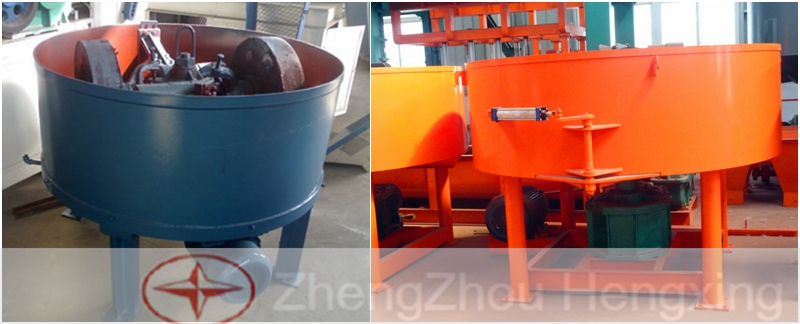

Introduction of Pan Mixer Machine
Pan mixer is forced mixing machine and the mixing drum is driven by gear ring. Pan mixers are specially designed with sturdy construction. Long life is ensured even at a high working rate.
Sealing arrangement guarantees against any sand intrusion in the centre bearings hinge bearings or roller bearings. Apart from the scrapers which are wearing parts in a sand mixer, wear is least for all the other components.
The concrete pan mixers of our company have the advantages of high automatic degree, high mixing quality, high efficiency, low energy consumption, small noise, easy operation, high discharging speed, etc.
The pan concrete mixer, a new type of concrete mixer, widely used construction machinery. It owns the reasonable design, and its mechanical accessories used industry standard parts, and its maintenance is much convenient.
Features of Pan Mixer Machine
1. Simple structure, convenient to install, and easy and safe to maintain.
2. High automatic degree, high mixing quality, high efficiency, low energy consumption.
3. Final concrete is discharged rapidly and completely.
4. Compact structure, reliable drive, adjustable mixer paddles.

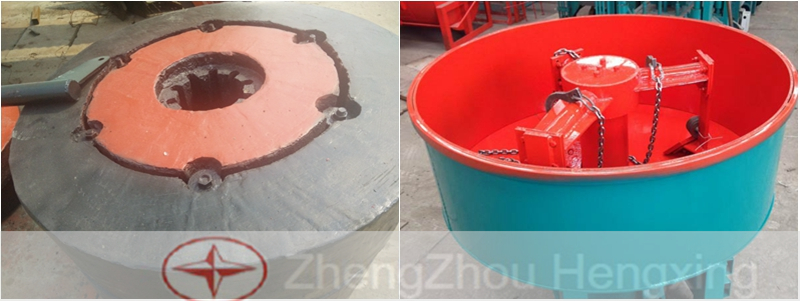

5. Adopt high hardness and tenacity wear-resistant alloy cast iron for the scaleboard and mixing blade, and so the whole machine has a long useful life.
6. Small noise, easy operation, high discharging speed, convenient maintenance.
Working principle of Pan Mixer Machine
The concrete pan mixer machine will mix material when it rotates in a clockwise direction and will discharge material when it rotates in an anticlockwise direction.
The pan mixer machine can combine with batching equipment to form a small and medium concrete batching plant. The machine adopting mobile discharging design, which can be used with tilting cart, is an ideal machine in construction sites.
Technical data
Model |
Disc dia. |
Mixing |
Feeding |
Power |
S1110 |
1000 |
1.5-2.5 |
110 |
4 |
S1111A |
1250 |
2-4 |
150 |
4 |
S1112 |
1250 |
3-5 |
150 |
5.5 |
S1113 |
1400 |
4-6 |
300 |
7.5 |
S114C |
1800 |
7-8 |
500 |
15 |
S114D |
1800 |
7-8 |
500 |
15 |
S118 |
1800 |
15 |
650 |
22 |
S1120 |
2000 |
20 |
900 |
37 |
