Ore Powder Ball Press Machine
Production: 3-50 t/h
Application: Ore powder ball press machine/briquetting machine is mainly used in industries of coal, mining, metallurgy, refractory matter, chemicals, building materials, power, energy, transportation, heating and so on.
Processible Materials: Iron ore fines, cast iron fines, mill scale, manganese ore fines, charcoal powder, coal fines, coke fines, charcoal powder, carbon black, etc.
MOQ :
1
Introduction of Ore Powder Ball Press Machine
Ore Powder Ball Press machine, also called Ore powder briquette machine, it is used to press a variety of iron ore powder, oxide iron sheet, steel slag, refractory, etc.
Ore powder ball press machine is also a kind of energy-saving & environmentally friendly products. For example dust, pool mud, oxide sheet, slag, iron powder, aluminum ash, silicon manganese powder, etc., after shaping, easy to transport, improving the utilization of waste, with good economic and social benefits.
Ore Powder Ball Press Machine has obvious advantages of successful rate, small power consumption, compact structure, convenient maintenance and so on. The quality of ore powder briquetting machine is reliable, multi-usage, strong pressure, suitable for large, medium and small enterprises which have a certain scale of production of the production line to use.
Features of Ore Powder Ball Press Machine
1. Ore powder ball press/briquette making machine is saving energy and protecting the environment.

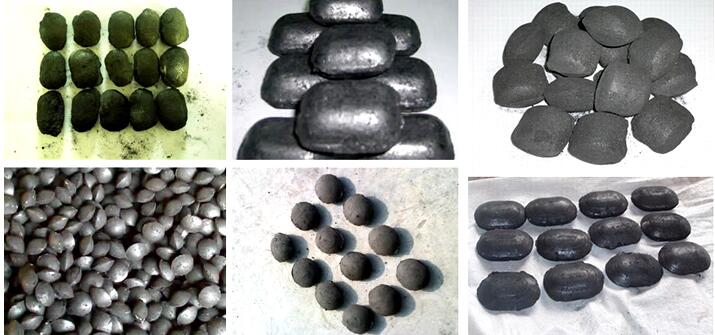

2. The final briquettes can be designed with different shapes of oval shape, egg shape, pillow shape, square shape etc.
3. The Iron powder ball press machine has strong structure, high briquetting ratio. The final balls have complete shape and high strength.
4. Simple structure and short technical process, the surface of the steel plate are painted with four layers of lacquer, making sure the equipment is durable.
5. Provide the matched binder for the briquettes making.
Working principle of Ore Powder Ball Press Machine

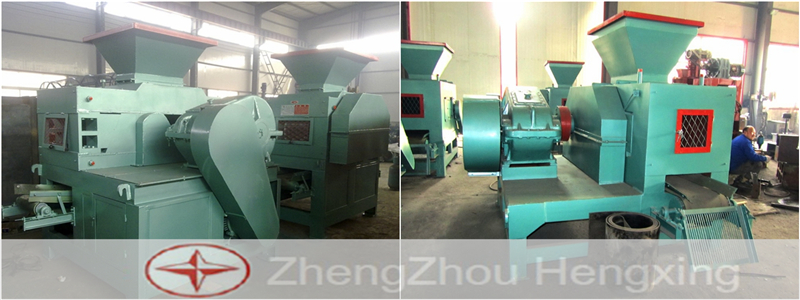

The ore powder ball machine consists of driving system, main framework, reducer, belt conveyer, pre-pressing device, aligned roller sleeve, hydraulic system and electric control system.
The dosed material will be put into the pre-pressing device of the machine stable and consistently to a uniform feeding level, after which material will be pushed under reinforced pressure into the aligned arc groove of the two rollers.
On the surface are evenly distributed forming dents. Material under the work of uniform speed and reverse directions of the twin rollers will be squeezed to and pressed in those dents.
Shortly after being pressed, the compacted material will fall down automatically. The constant running force is power to periodic rotating and pressing to realize batch production.
Technical data
Model
Decelerator
Ratio
Roller size
Shaft
Motor
Capacity
Dimension
HX360-4
ZQ350
1:31.5
Ф360×250
15-17
7.5
3-5
2.26×1.53×1.98
HX360-2
ZQ350
1:31.5
Ф360×250
15-17
7.5
3-5
2.26×1.53×1.76
HX400-4
ZQ400
1:31.5
Ф400×250
15-17
11
4-7
2.3×1.38×1.96
HX400-2
ZQ400
1:31.5
Ф400×250
15-17
7.5
4-7
2.2×1.38×1.91
HX430-4
ZQ400
1:31.5
Ф430×250
15-17
11
5-8
2.4×1.53×2
HX430-2
ZQ400
1:31.5
Ф430×250
15-17
7.5
5-8
2.3×1.53×1.9
HX500-4
ZQ500
1:31.5
Ф500×350
15-17
22
8-10
2.61×1.75×2.35
HX400-2
ZQ500
1:31.5
Ф500×350
15-17
15
8-10
2.61×1.75×2.1
HX650-4
ZQ650
1:31.5
Ф650×350
15-17
30
12-20
3.42×2×2.4
HX650-2
ZQ650
1:31.5
Ф650×350
15-17
22
12-20
3.42×2×2.2
HX750-2
ZQ750
1:31.5
Ф750×380
15-17
30/4
25-30
3.7×2.55×2.6
HX850-2
ZQ850
1:31.5
Ф850×436
15-17
37/4
35-40
3.9×2.6×2.7
HX1000-2
ZQ1000
1:31.5
Ф1000×530
15-17
45/4
40-45
4×2.8×2.8
(mm)
speed(r/min)
power(kw)
(t/h)
(m)
