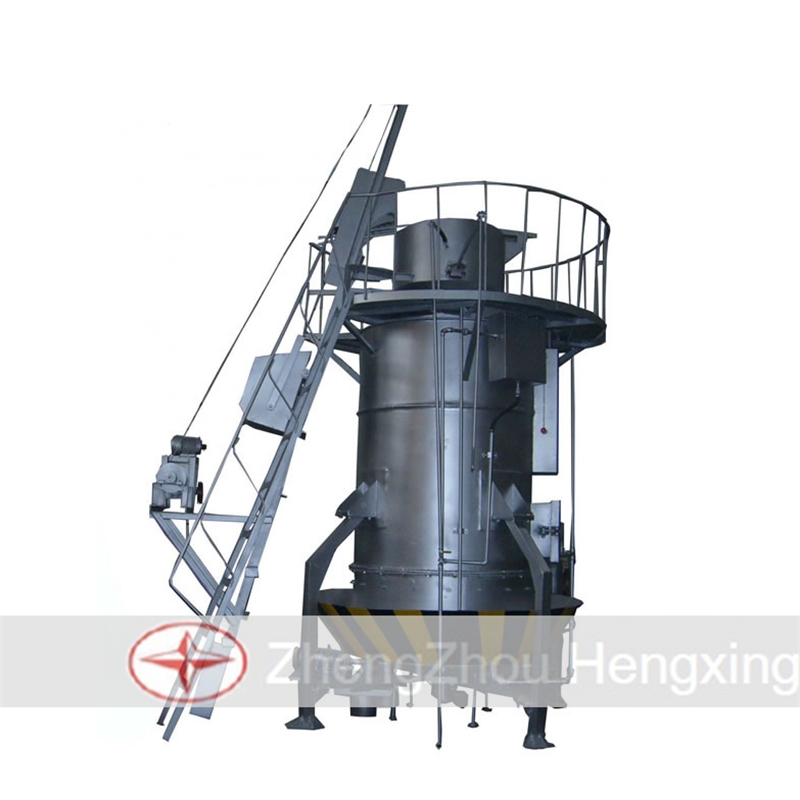

Coal Gasifier

Coal Gasifier

Production: 60-840 kg/h

Application: The coal gasifier is widely used in metallurgical, mechanical, chemical industry, nonferrous metal industry and other industries.

Processible Materials: Cement, lime, raw meal, apatite, urea, fly ash, gypsum etc.

  • MOQ :

    1
inquiry now
Product Details

Introduction of Coal Gasifier

Coal gasifier is one of the high production capacity and high gasification efficient gasifier. It is used to convert the combustible matter into a combustible gas which could utilize the industrial gas and heat various furnaces or the products directly.


The equipment is suitable for gasifying coking coal, coke and other fuels, are widely used as furnace kiln of machinery, metallurgy, chemical industry, glass, building materials, light industry, food, textile industry.


It is used to convert the combustible matter into the combustible gas which could utilize the industrial gas and heat various furnaces or the products directly. The coal gasifier has the characteristics of high yield, high efficiency, convenient to operate and with better adaptability, etc.

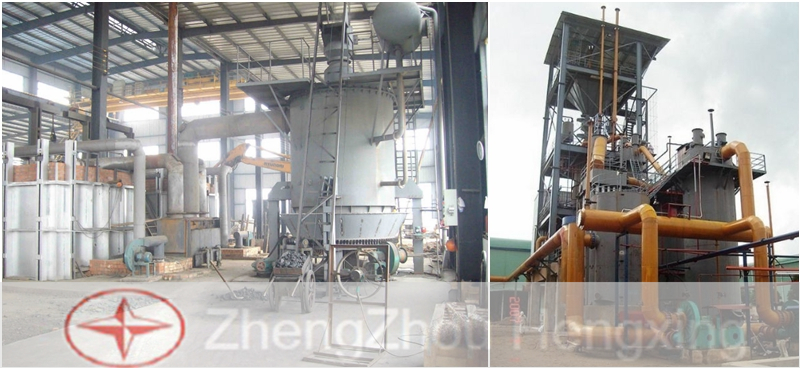

Best Coal Gasifier Plant

Features of Coal Gasifier

1. Flexible – can oper­ate in air-blown or oxygen-blown mode.

2. Lower energy consumption – less oxygen consumption than slagging gasifiers

3. Low-cost proprietary refractory with long life.

4. Lowest water use – excellent fit for sites with limited water resources

5. Convenient to remove slags, easy to operate and maintain.

6. Have a significant effect of smoke prevention and dust control, meet environmental protection requirements.

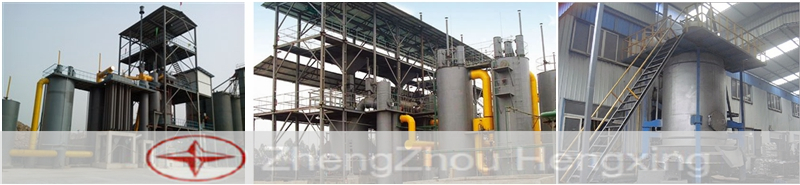

Best Quality Coal Gasifier Plant

Working principle of Coal Gasifier

When the fuel of coal is into the furnace by the coal machine, reacts with gasifying agent (air + water vapor) by the lower part of the drum, then the gasification happen, and along the bed height direction from bottom to top, there are five layers: the ash layer, oxide layer, reduction layer, carbonization layer, drying layer.

1. Ash layer: the coal come down from the top, the gas agent go up from the bottom.

2. Oxide layer: also called burning layer, thermal chemical reaction, the O with heat in the air reaction to become CO2, release heat.

3. Reduction layer: the coal after heat and together with steam complex reaction become to CO, H2, CH4, O2, CO2, N2 etc, and release heat.

4. Carbonization layer: under 400-500,the volatile and other materials come out, the coal become to coke, the coke come to the reduction layer for chemical action.

5. Dryer layer: to dry the coal gas.


Technical data

Model

QM0.8

QM1.0

QM1.2

QM1.5

QM1.6

QM1.8

QM2.0

QM2.4

QM2.6

QM3.0

Chamber
dia.(mm)

800

1000

1200

1500

1600

1800

2000

2400

2600

3000

Hearth active
 surface()

0.5

0.785

1.13

1.77

2.01

2.54

3.14

4.52

5.31

7.07

Applicable
fuel

weak-caking anthracite, biruminous coal, coke

Fuel size
 (mm)

25-80

Fuel consumption
 (kg/h)

40-100

70-140

120-190

160-350

350-460

500-600

500-720

700-1040

850-1200

1700-2000

Air agent

Air, stream

Gas output
 (Nm³/h)

140-350

245-490

420-670

560-1200

1200-1600

1500-2100

1750-2500

2500-3600

3000-4300

6000-7000

Coal gas calorific
value (Kj/ Nm³)

5020-5670

2050-6000

Water jacket
 heating area()

4.02

5.02

6.78

10.37

11.06

12.44

17.58

21.58

23.69

30.16

Stream
output(kg/h)

60

80

130

200

220

260

350

420

600

840

Gas exit
temperature(℃)

400-500(related to coal sorts)

400-500(related to coal sorts)

Gas exit
pressure(pa)

1000

980-1470

1470-1960

Gas exit
diameter(mm)

219

325

325

426

426

529

630

720

820

1020

Air pressure
 (pa)

3000

4000

Saturated air
 temperature( ℃)

50-60

50-65

Ash tray
speed(r/h)

0.177-1.77

Equipment
gross weight (t)

3.5

4.5

5

7.5

10

20

23.4

29.8

32

37.6

Complete
 equipment
power (kw)

6

6

6

7

8

10

14

20

20

27

Tuyere dia.
 (mm)

108

108

140

165

219

325

325

426

426

426
