Dry Powder Ball Press Machine
Production: 0.5-10t/h
Application: The finished briquettes are widely used in industries of lime calcinations, blast furnace calcinations and metallurgy etc. The application of lime briquetting machine becomes a promising project which realizes energy saving, environment protection, and resource recycling.
Processible Materials: Quick Lime Dry Powder, Coal, gypsum, limestone, charcoal, slag, iron, aluminum, blue carbon, powder, kaolin, clay, etc.
MOQ :
1

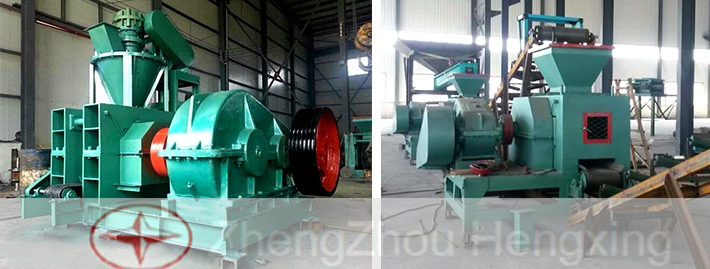

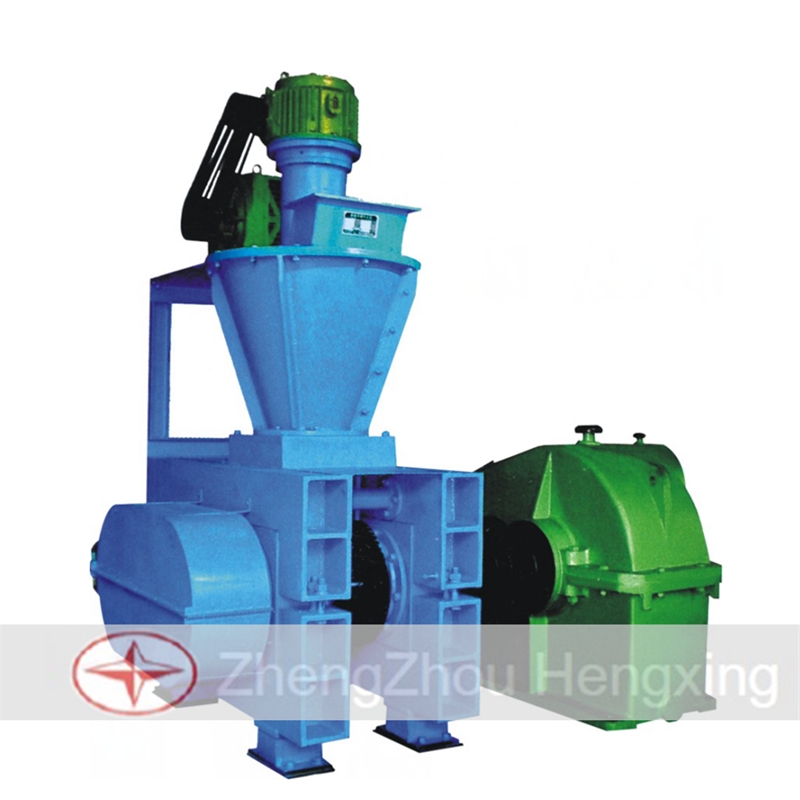

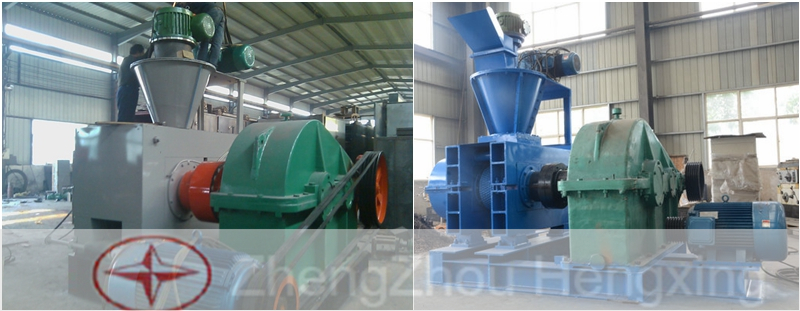

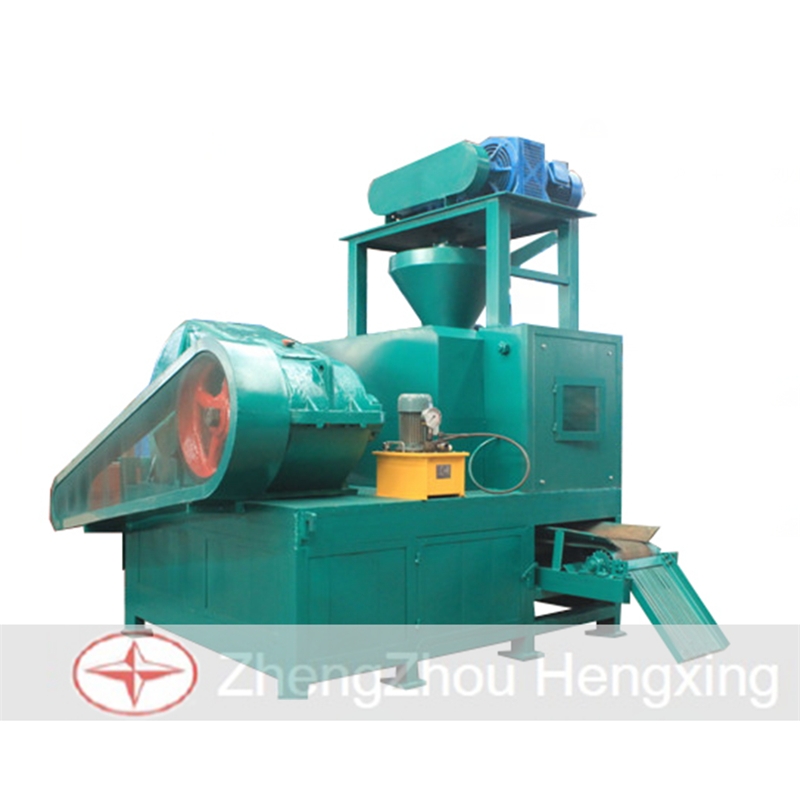

Introduction of dry powder ball press machine
Dry Powder Ball Press Machine is also known as dry powder briquetting press machine, which can be used to suppress pulverized coal, iron powder, coking coal, aluminum, iron, tin oxide, carbon powder, coal powder, slag, gypsum, tailings, sludge, kaolin, activated carbon and other powder materials which contain low wate content or no water.
This kind of Dry dust ball press machine can press dry powder into briquette at one shot.
After being processed, the dry powder briquette can be used in transporting and construction area. High-pressure dry briquette machine is mainly used for high-density metal scrap (scrap iron, copper scrap, aluminum scrap, etc.), granular powder metal powder (iron powder, aluminum powder, copper powder, lead powder, etc.), metallurgical additives, sponge iron, etc. Without adding any binder pressed into the case of cylindrical cakes of high-density block.

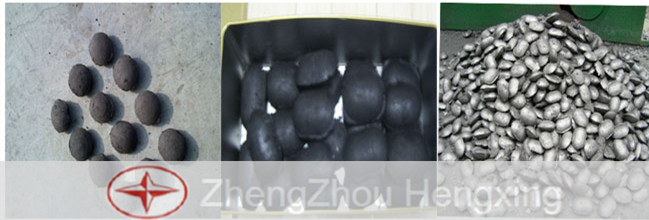

What’s more, this High pressure dry briquette machine not need water and binding agent, dry powder granulation The Dry powder ball pressing machine can press a lot of materials for various shapes of briquettes. Outlet shapes can be round ball, pillow ball, oval ball, egg ball, etc., and also we can customize the shapes according to your requirement.
Features of dry powder ball press machine
1. Dry powder ball press machine realize the direct dry pelletizing process without follow-up drying treatment.
2. Dry powder ball press machine features low energy consumption, high efficiency, and low failure rate.
3. The products have high density, high strength, and high hardness.
4. The roller is made of hard materials with good wear resistance and long lifetime.
5. The end products shape of products can be all shapes
6. Comfortable silent running
Working principle of dry powder ball press machine
Dry powder briquetting machine transfers power to the two rollers through the speed reducer and the two pressure rollers will rotate in opposite directions.
When the two rollers are rotating, materials will move into the ball mold on rollers. With the rotation of rollers, the small pressure of materials will become big.
When the material is moving to the line contact point of rollers, the pressure has reached the peak. With the huge line pressure, the powder materials will be pressed into finished balls.
Technical data
Model
Roll dia.
Roll width
Production
Main motor
Pre-voltage
LYQ
0.5
φ299
180
500
18.5
7.5
LYQ
1.0
φ367
183
1000
37
11
LYQ
1.5
φ367
183
1500
45
15
LYQ
2.0
φ399.5
252
2000
45
15
LYQ
3.0
φ522
196
3000
55
15
LYQ
5.0
φ738/700
210/225
5000
75
18.5
LYQ
6.0
φ738
225
6000
90
18.5
LYQ
8.0
φ758
225
8000
110
18.5
LYQ
10
φ858
300
10000
110
18.5
(mm)
(mm)
(kg)
power (kw)
motor(kw)
