Hydraulic Briquetting Machine

Hydraulic Briquetting Machine

Production: 1-15t/h

Roller diameter: 290-1000mm

Application: Powder of non-ferrous metal industry, auxiliary materials, powder of refractory material industry and high value-added materials is more suitable for use.

Processible Materials: Coal, gypsum, limestone, charcoal, slag, iron, aluminum, blue carbon, powder, kaolin, clay, etc.

  • MOQ :

    1
inquiry now
Product Details

Introduction of Hydraulic Briquetting Machine

Hydraulic Ball Press Machine is also called hydraulic briquetting machine, can be used to press various mineral powder, metal powder, pulverized coal, coke powder and other materials into balls. It has these features, such as strong rigidity, stable running, wear-resisting steel manufacturing for roller and long service life.


The hydraulic briquette press changes the ordinary pressure ball device to a hydraulic one which makes the equipment more automatic, intelligent, and reduces the manpower operating cost.


And the roller of the hydraulic ball press machine is made of the hard material which gives it good resistance to abrasion, thus improving the service life of the compression roller effectively in the end.

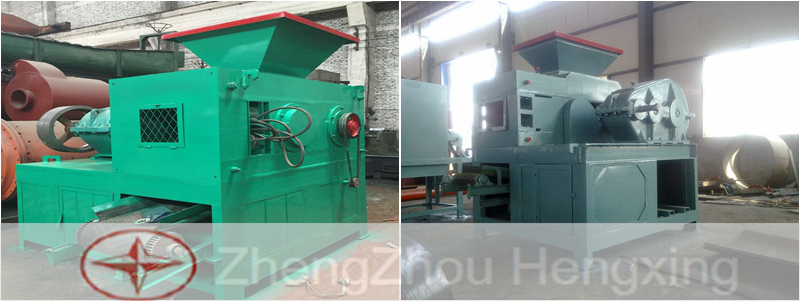

Hydraulic Briquette Press

Features of Hydraulic Briquetting Machine

1. The principal axis is cast with 40cr and the roller adopts wear-resisting alloy so that the whole machine has a compact structure and is solid and durable.

2. Hydraulic ball press machine is convenient maintenance and operation

3. Finished products possess high density, strength, and stiffness.

4. High briquetting ratio.

5. Different design according to your place.

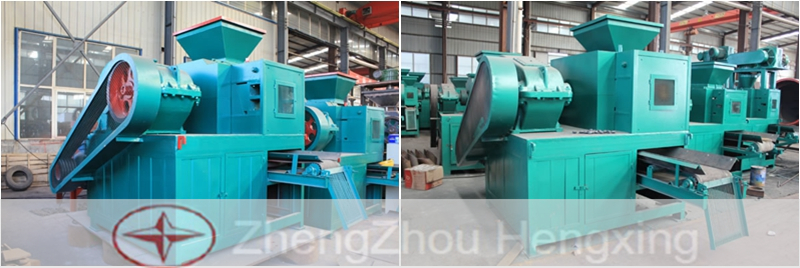

Used Biomass Briquetting Machine

Working principle of Hydraulic Briquetting Machine

Motor passes power to the two rollers at the same time by the reducer. The two rollers rotate in the opposite directions. In the process of two roller rotating, the material naturally goes into the ball mold on the roller.


As the rotating of the roller, material bears great pressure and presses the powder into ball at the shortest distance between two rollers. Under the action of the big line pressure, material by powder become finished product ball.


Technical data

Model

Decelerator

Ratio

Roller size
(mm)

Shaft
speed(r/min)

Motor
power(kw)

Capacity
(t/h)

Dimension
m

HX360-4

ZQ350

1:31.5

Ф360×250

15-17

7.5

3-5

2.26×1.53×1.98

HX360-2

ZQ350

1:31.5

Ф360×250

15-17

7.5

3-5

2.26×1.53×1.76

HX400-4

ZQ400

1:31.5

Ф400×250

15-17

11

4-7

2.3×1.38×1.96

HX400-2

ZQ400

1:31.5

Ф400×250

15-17

7.5

4-7

2.2×1.38×1.91

HX430-4

ZQ400

1:31.5

Ф430×250

15-17

11

5-8

2.4×1.53×2

HX430-2

ZQ400

1:31.5

Ф430×250

15-17

7.5

5-8

2.3×1.53×1.9

HX500-4

ZQ500

1:31.5

Ф500×350

15-17

22

8-10

2.61×1.75×2.35

HX400-2

ZQ500

1:31.5

Ф500×350

15-17

15

8-10

2.61×1.75×2.1

HX650-4

ZQ650

1:31.5

Ф650×350

15-17

30

12-20

3.42×2×2.4

HX650-2

ZQ650

1:31.5

Ф650×350

15-17

22

12-20

3.42×2×2.2

HX750-2

ZQ750

1:31.5

Ф750×380

15-17

30/4

25-30

3.7×2.55×2.6

HX850-2

ZQ850

1:31.5

Ф850×436

15-17

37/4

35-40

3.9×2.6×2.7

HX1000-2

ZQ1000

1:31.5

Ф1000×530

15-17

45/4

40-45

4×2.8×2.8
