Circular Vibrating Screen
Capacity: 8-810 t/h
Feeding size: 200-400mm
Screen size: 3-150 mm
Application: Quarry screening material stone design, also available for coal preparation, mineral processing, building materials, electricity and chemical sectors doing product grading.
Processible Materials: Basalt, river gravel, bluestone, iron ore, copper, steel slag, granite, limestone, concrete, lime, gypsum, lime, coal, aggregate production line.
MOQ :
1

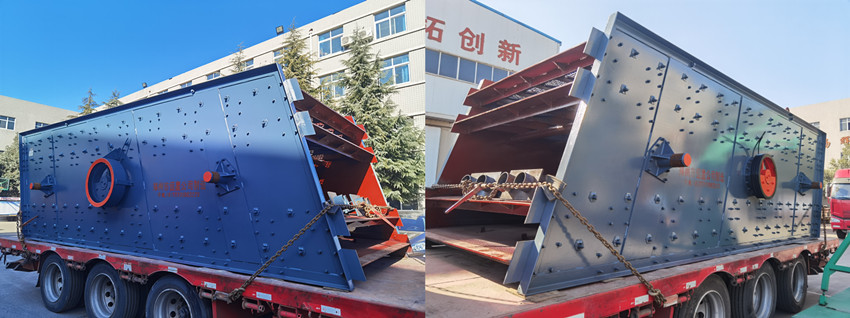

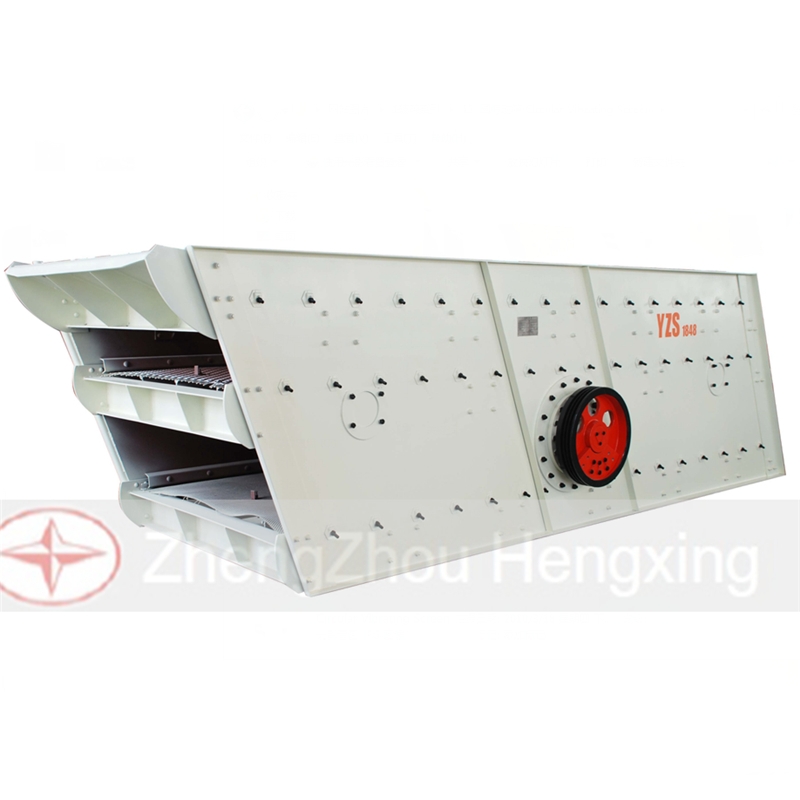

Introduction of Circular vibrating screen
Circular vibrating screen is a kind of doing a circular vibrating, numerous layers and high efficiency vibrating screen. It is used to separate materials into various sizes for further processing.
With the feature of efficient vibrating screen, adjustable amplitude, long material screening line, multi-layer screening, clear all specifications screening, screening efficiency.

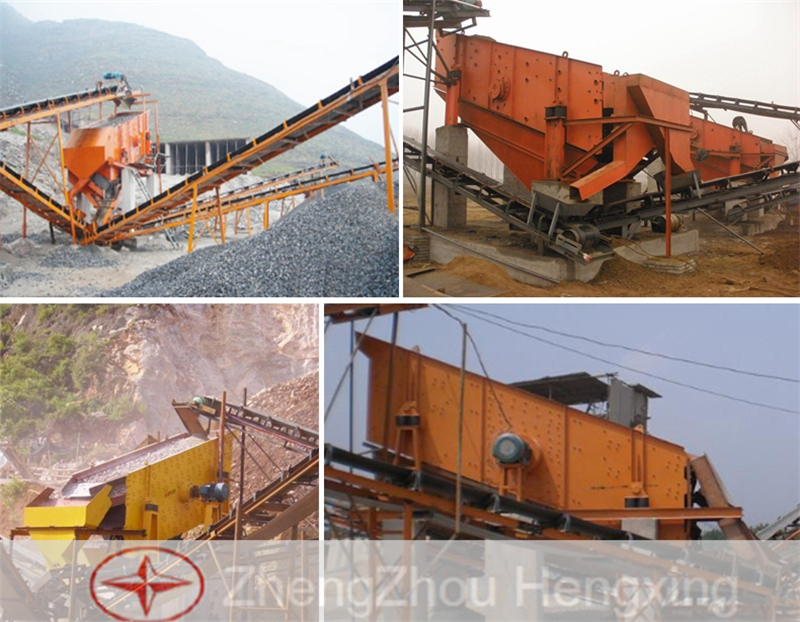

Suitable for quarry screening aggregate, coal preparation, mineral processing, building materials, electricity and chemical industries are also available for product grading.
Features of Circular vibrating screen:
1. Strong vibration of the screen box, can reduce the material clogging the sieve, sieve has high screening efficiency and productivity.
2. Tire couplings, flexible connection, smooth operation.
3. Circular vibrating screen with rubber isolation spring, long life, low noise, and smooth over the resonance region.
4. Simple structural design, greatly reducing the service and maintenance operations
5. Easy repairing, screening efficiency, sturdy, durable and long life.
6. Improved working environment due to small noise.
Working principle of Circular vibrating screen:
It is mainly composed of screen box, exciter, suspension (or support) device and motor. Motor through V-belt exciter eccentric block to produce the high-speed rotation. Operation of the eccentric block to produce great centrifugal force to stimulate sieve box to produce a certain amplitude circular motion, screen box was vibrating.
Change the exciter eccentric weight, obtain different amplitude. Tthe material in the tilt screen surface by the impulse to pass by the screen box and generate continuous movement of throwing materials with the screen surface meet manipulation smaller than the sieve particles through sieve, in order to achieve the classification.
Technical data
Type
Screen
Layers
Sieve
Max. Feed
Capacity
Power
Vibrating
Double
YZA1235
3500*1200
1
3-50
200
10-120
11
870
5-9
2YZA 1237
3700*1200
2
3-50
200
10-120
11
870
5-9
2YZA1548
4800*1500
2
3-100
400
30-275
15
870
5-9
3YZA1548
4800*1500
3
3-100
400
30-275
15
870
5-9
2YZA1848
4800*1800
2
3-100
400
56-330
18.5
870
5-9
3YZA 1848
4800*1800
3
3-100
400
56-330
18.5
870
5-9
2YZA 1860
6000*1800
2
3-100
400
65-586
22
870
5-9
3YZA 1860
6000*1800
3
3-100
400
65-586
22
870
5-9
4YZA 1860
6000*1800
4
3-100
400
65-586
22
870
5-9
2YZA 2160
6000*2100
2
3-100
400
81-720
30
730
5-9
3YZA 2160
6000*2100
3
3-100
400
81-720
30
730
5-9
4YZA 2160
6000*2100
4
3-100
400
81-720
30
730
5-9
2YZA 2460
6000*2400
2
3-150
400
100-810
37
700-900
5-9
3YZA 2460
6000*2400
3
3-150
400
100-810
37
700-900
5-9
4YZA 2460
6000*2400
4
3-150
400
100-810
37
700-900
5-9
Spec (mm)
Pore (mm)
Size (mm)
(t/h)
(kw)
frequency(r/min)
amplitude(mm)
