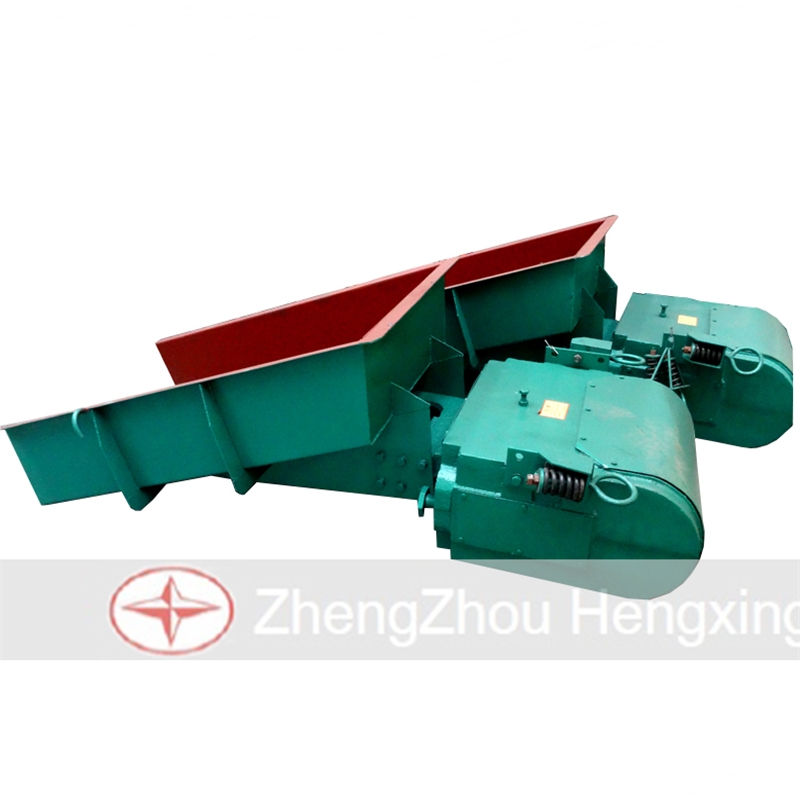

Electromagnetic Vibrating Feeder

Electromagnetic Vibrating Feeder

Feeding capacity: 5-100t/h

Feeding size: 50-150

Application: Electromagnetic Vibrating Feeder is widely used in mining, metallurgy, building materials, coal, light industry, chemical industry, electric power, machinery, food, medicine and other industries.

Processible Materials: Electromagnetic Vibrating Feeder is for coal, steel, chemical etc.

  • MOQ :

    1
inquiry now
Product Details

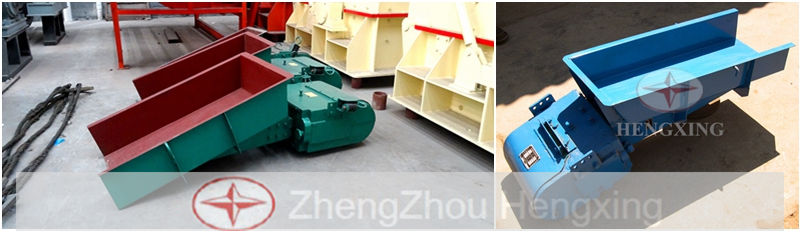

Introduction of Electromagnetic Vibrating Feeder

Electromagnetic vibrating feeder can transmit the massive, granular and powdered materials from storage silo to the receiving device evenly and continuously. It adapted to automatic batching , quantitative packaging and automatic control.

Fmc Syntron Magnetic Feeder

It can realize even feeding for crushers in sand stone production line and make rough screening for materials.  In sand or gravel production line its seamless feeding prevents blockages at receiving hopper. It achieves remarkable performance with help of two eccentric shafts rotating at high speeds in opposite directions.


Vibrating feeder is widely applied in combined operation of crushing and screening in the industries like metallurgy, mine, mine selection, building materials, chemicals, etc.

Vibratory Bowl Feeder Design

Features of Electromagnetic Vibrating Feeder

1. Small size, light weight, simple structure, easy installation.

2. Reliable operation, long usage life, consume less energy.

3. High efficiency and feeding capacity. Good adjusting performance and without material splash

4. Can instantly change and open and close material flow, to feed the high accuracy.

5. Can achieve centralized control of production processes and automatic control.

6. No lubrication, easy maintenance, low operating costs.

Vibratory Bowl Feeder India

Working principle Of Electromagnetic Vibrating Feeder

When the power is on, these controllers convert the input AC supply voltage into pulsating DC output. The electric current passes the electric coils, which creates a magnetic field. The magnetic force changes into vibrating force, which forces the transmission trough body to make simple harmonic vibration or similar to simple harmonic vibration in a certain direction.


When the acceleration of its vibration achieves some certain value, the materials will make continuous and small throws or slides along the transmission direction in the transmission trough body, which causes the forward motion and transmission of the materials.


Technical data

Model

Capacity(t/h)

Feeding
granularity (mm)

Double
swing(mm)

Voltage
 (V)

Working
 current (A)

Power
 (kw)

Weight
(kg)

Horizontal

Capacity

GZ1

5

7

50

1.75

220

1.34

0.06

75

GZ2

10

14

50

3

0.15

155

GZ3

25

35

75

4.6

0.20

225

GZ4

50

70

100

8.4

0.45

460

GZ5

100

140

150

12.7

0.65

656
