Ceramic Ball Mill
Loading: 0.05-15 tons / times
Production: 0.2– 120 t/h
Application: Cement, silicate products, new building materials, refractories, fertilizers, black and non-ferrous metal processing and glass ceramics and other production industries.
Processible Materials: Copper ore, pyrrhotite, hematite, limonite, molybdenum ore, potassium feldspar and so on.
MOQ :
1

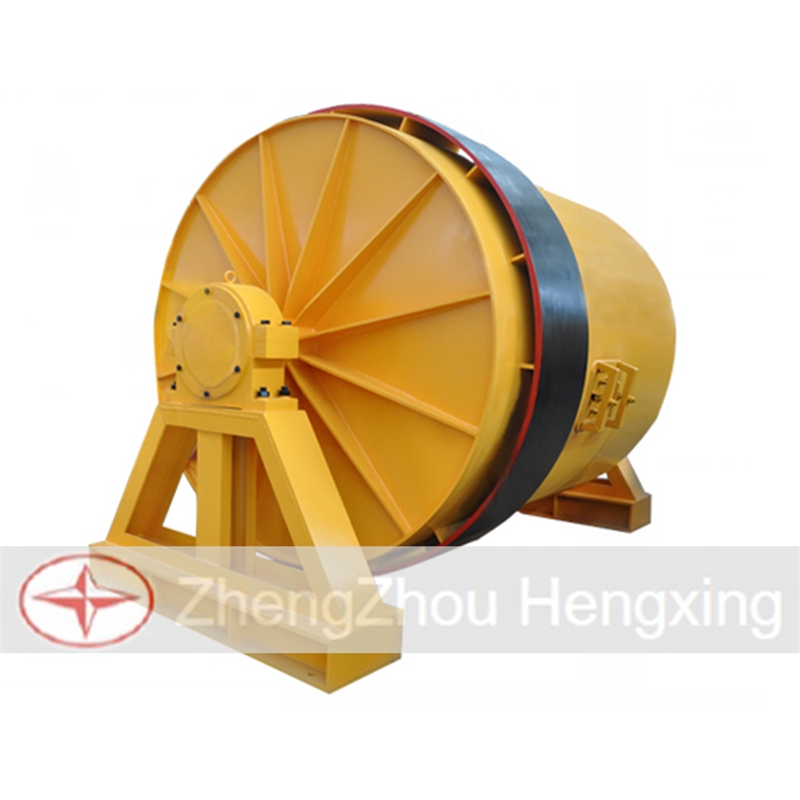

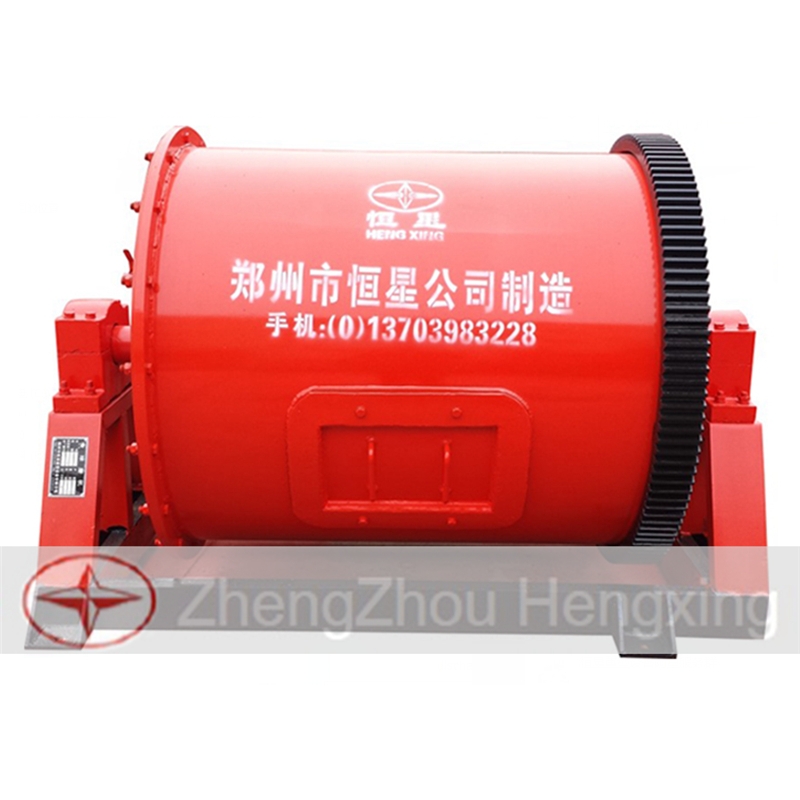

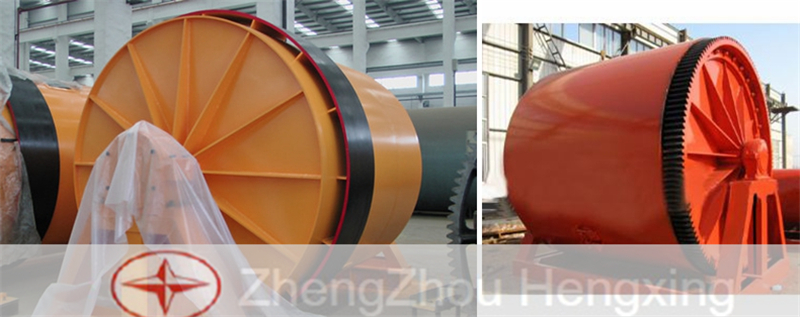

Introduction of Ceramic ball mill

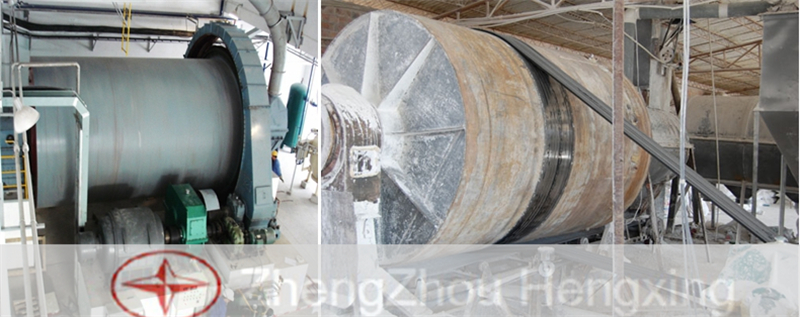

Ceramic ball mill is mainly applied to the powder processing of mineral products in the industries of metallurgy, construction materials, chemical, and mining, etc. It can grind various ores and other materials with dry type and wet type.

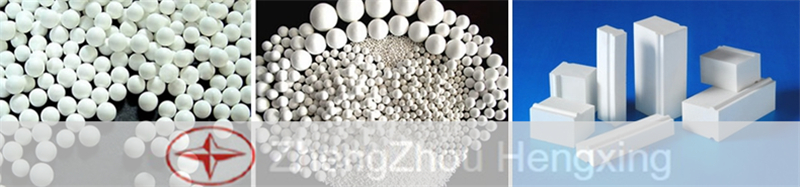

Ceramic ball mill reduces replacement frequency of easily damaged parts at the most extent. Lining plates ,steel balls are made of high chrome steel,which is very wear-resisting and durable, brings a lot of advantages for ball mill’s maintenance and working.
Features of Ceramic ball mill:
1. Energy-saving, new structure, high capacity.
2. Stable performance, easy operation.
3. Simple structure and split installation.
4. Multi-class seals.
5. Low invest, high return
Working principle of Ceramic ball mill:
The fineness of the grinding operation is controlled by the grinding time. The motor from the decompression start, reduce the starting current, its structure is divided into the overall independence.
The motor through the deceleration device to drive the cylinder rotation, the barrel of broken ore and steel ball in the cylinder by the friction and centrifugal force by the liner to a certain height due to the role of gravity, it will throw and fall, Impact and grinding under the effect of being gradually smashed.
The pulverized ore is discharged from the container through the discharge section. The coarse sand through the joint feeder and then back to the ball mill to continue grinding. Ceramic ball mill is a 24 hour continuous grinding equipment.
Technical data
Model
Cylinder
Loading
Rotation
Motor
Capacity
Weight
1120
Ф910
0.2
35
2.2
0.2
1.91
1420
Ф1200
0.5
31.45
4
0.5
2.5
1800
Ф1400
1
27
7.5
1
3
2100
Ф1800
1.5
23
11
1.5
4.5
2600
Ф2200
2.5
20
18.5
2.5
6.5
2600
Ф2200
3
20
22
3
7
3000
Ф2500
5
16
37
5
13
3400
Ф2800
8
13.8
45
8
19
4000
Ф2800
10
13.8
55
10
20
4000
Ф3000
15
13
75
15
28
5000
Ф3100
18
12
90
18
28.5
5800
Ф3200
20
13
90
20
29.9
6500
Ф3400
30
14.2
110
30
32
7000
Ф3600
40
13
132
40
36
8000
Ф3800
50
11
200
50
45
8500
Ф4000
60
10
200
60
52
size (mm)
weight (t)
speed (r/min)
power(kw)
(t)
(t)
