Zhengzhou Hengxing Heavy Equipment Co., Ltd.

Flotation Machine Flotation Machine

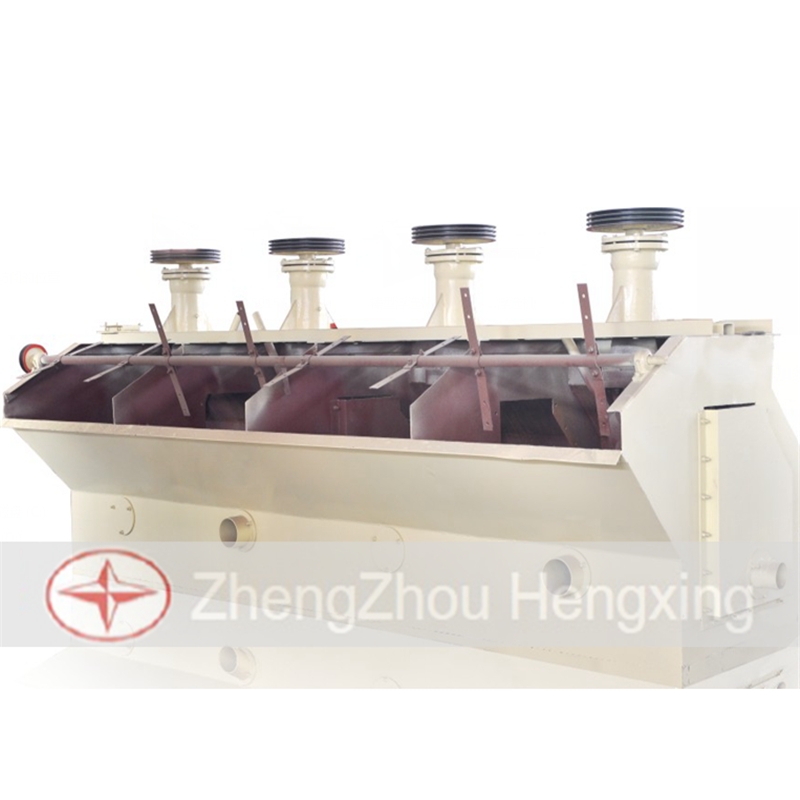

Flotation Machine

Effective volume: 0.35-20m³

Production: 0.2–16 m³/min

Impeller rotation speed: 191–400 r/min

Application: It is widely used for the separation and recovery of fine minerals of ferrous metal, precious metal, nonferrous metal, non-metallic minerals, rare metal, non-metal, etc.

Processible Materials: Gold ore, iron ore, copper ore, molybdenum ore, aluminum ore, lead ore, talc, coal fluorite, bauxite, potassium feldspar, quartz and so on.

  • MOQ :

    1
inquiry now
Product Details

Introduction of Flotation Machine

Flotation machine is the equipment to complete the flotation process, which is also called flotation cell. The flotation machine is suitable for the selection of non-ferrous and ferrous metal, which also can be applied in non-metal such as coal fluorite and talc sorting.

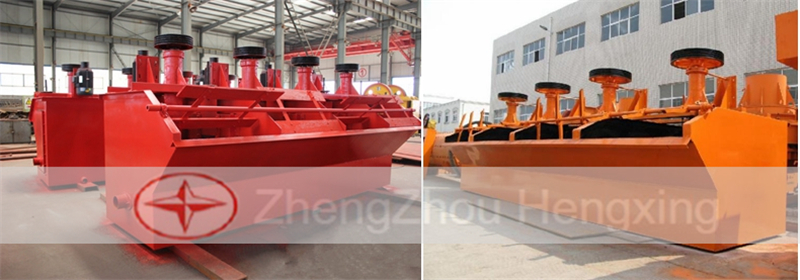

Flotation Cells Mineral Processing

The flotation cell is driven by a motor transmission when impeller rotates, which can form the pressure of centrifugal effect, and on the one hand, suction sufficient air is mixed with the slurry, on the other hand, to stir the slurry mixed with the drug is the second step while refinement of the foam, so that mineral above adhesive foam float to the pulp surface mineralized foam is formed.


Adjusting the height of the gate and to control the liquid level are the useful ways for foam scraper by being scraped off. The slurry with the pharmaceutical treatment can be fixed in bubbles above with some mineral particles selectively, which is scraped off by floating on the surface, and the rest can be still retained in the slurry in order to reach the purpose of sorting the material. There are many types of flotation machine, and the most common one is the mechanical mixing flotation machine.


Features of Flotation Machine

1. Self-suck air without foam pump, low power consumption.

2. Pulp-air intensive mixed help for solids lifting and suspending.

3. Promote positive vertical circulation of pulp, the process is easy to be changed.

4. Reasonable circulation of pulp decreases coarse sand sedimentation.

5. With feed pipe and impeller make sure the pulp is 100% mixed in every cell.

Froth Flotation Process

Working principle of Flotation Machine

When flotation machine is working, the pulp in the cell is breathed from the surrounding in the between of impellers. At the same time, the low-pressure air blew by air blower enters in through air distributor too. Pulp and air mixture totally, and then enter into the cell from the impeller.


When bubbles rise foam stability region, they are collected together and flow out into bubble cell. That is commonly known as hydrophobic mineral particles attached to the bubble, and float together with the bubble to the slurry surface.


Some other pulp flows towards the bottom of impeller, and is mixed by impeller with air again to form mineral laden bubbles. The rest will flow towards next cell until leaving tailings.


Technical data

Model

Effective
volume (m³)

Capacity
m³/min

Impeller
 dia.
mm

Impeller RPM
 (r/min)

Motor power(kw)

Weight for
 four cells(t)

Agitating

Scraper

XJ type
 self-absorption
 air and pulp

XJ-1

0.13

0.05-0.16

200

1000-5000

0.75

0.55

1.5

XJ-2

0.23

0.12-0.28

250

1000-5000

1.1

0.55

1.9

XJ-3

0.35

018-0.4

300

1000-5000

1.5

0.75

2.6

XJ-6

0.62

0.3-0.9

350

1000-5000

3

1.1

3.4

XJ-11

1.1

0.6-1.6

500

1000-5000

5.5

1.1

4.9

XJ-28

2.8

1.5-3.5

600

1000-5000

11

1.5

9.7

XJQ type
suck air slurry
automatically

XHQ-4

4

2-25

400

290; 315

11

1.1

3.2

XHQ-8

8

4.2-10

560

205; 225

22

1.1

10.2

XHQ-16

16

8-20

700

170; 180

30

1.5

18.6

XHQ-28

28

14-35

760

160; 185

55

1.5

31.8

SF type
self-absorption
 air and pulp
 horizontal placement,
no need
foam pump

SF-0.37

0.37

0.2-0.4

300

352-442

1.5

0.55

1.0

SF-0.7

0.7

0.3-1.0

350

336

3

1.1

1.9

SF-1.2

1.2

0.6-1.6

450

298

5.5

1.4

2.8

SF-2.8

2.8

1.5-3.5

550

268

11

1.5

4.2

SF-4

4

2-4

650

305

15

2.2

5.2

SF-8

8

4-8

760

191

30

2.2

8.3

SF-10

10

5-10

760

191

30

3

9.0

SF-16

16

6-16

850

180

45

3

15.3

JJF type
self-suck
echelonment
 placement
match with
SF floatation

JJF-4

4

2-4

410

305

15

1.5

2.3

JJF-5

5

2-6

410

305

15

1.5

2.4

JJF-8

8

4-8

540

233

22

2.2

4.5

JJF-10

10

5-10

540

233

22

2.2

4.8

JJF-16

16

5-16

700

180

37

2.2

8.0

JJF-20

20

5-20

730

180

37

2.2

8.5
