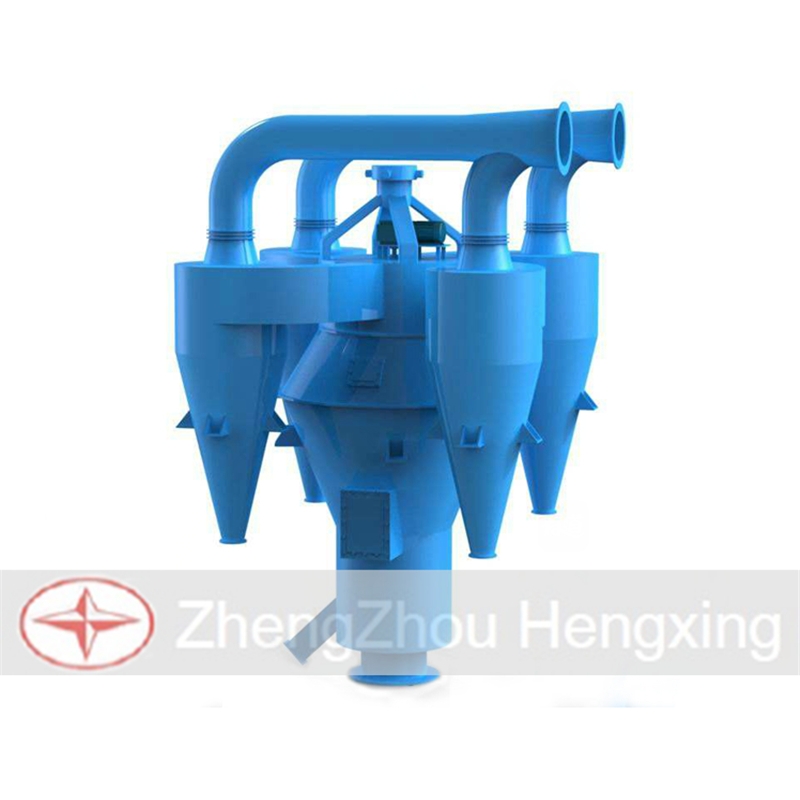

Super Fine Rotor Powder Concentrator
Finished fineness: 0-3 R0.08 (%)
Handling air volume: 16000-180000m³ / h
Application: Cement, silicate products, new building materials, refractories, glass ceramics and other production industries.
Processible Materials: Limestone, cement clinker, bauxite, active lime, aluminum hydroxide, bentonite and so on.
MOQ :
1
Introduction of Super Fine Rotor Powder Concentrator
KX-high thin rotor powder concentrator is an improved version of external circular rotor powder concente\rator by our years' research and development.it is designed by the theory of plane vortex cyclone powder concentrator.
The practice proved that the efficiency of the election is more than 85% ,and the fine degree of adjustment is flrxibility with a reliable performance.

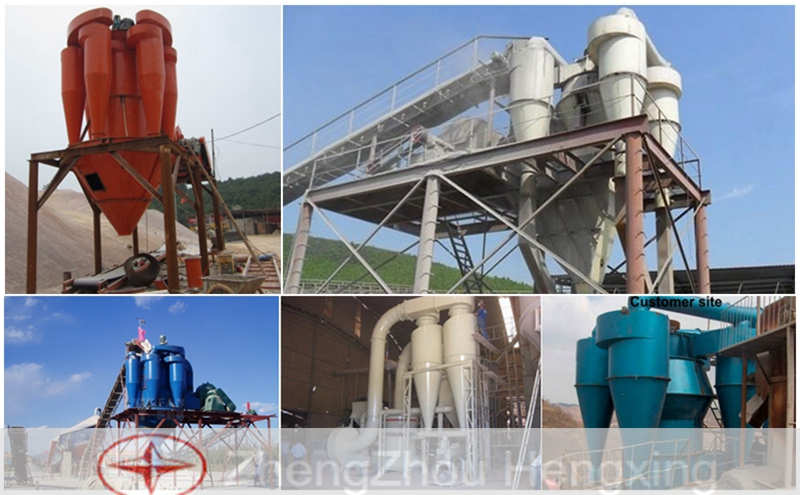

The device can also be used for drypowder separation in the machine-made sand production process. It can easily control the content of powder so as to meet different needs of users.
Features of Super Fine Rotor Powder Concentrator
1. Adjustable rotating speed, can control powder fineness between 40-300um.
2. Extremely reliable and robust design.
3. Low energy consumption but high efficient, low maintenance because no wear parts compared to traditional screening system.
4. Widely material adaption, inlet chute, and rotating parts ot the body itself liner can be with ceramic tiles or polyurethane if for abrasive material or iron avoiding materials.
5. This machine effectively improves the grain grade of final product, and enhances the cement quality to adjust to national new cement standard.
6. With available condensation resistant design, it can in seasoned with the southern’s high moisture and northern’s cold climates.
Working principle of Super Fine Rotor Powder Concentrator
Through adjustable motor controls main shaft rotating speed whilst inspect powder output condition, by adjusting impeller angle and rotating speed makes the separating chamber air steam change, so that to ideal process requirements.
Feed enters the classifier at a controlled rate from the top and falls onto a rotating distributor plate. The plate disperses the product into an adjustable airsteam which is generated by the integral fan. The fines are entrained in the air steam and are carried over to the outer cone whilst the coarse particles fall down into the inner cone. The products are discharged from the bottom of the machine. This self contained process significantly reduces investment, maintenance, and running costs.
Technical data
Model
Dia. of
Spindle
Capacity
Product
Motor of main axes
Blower
Power
Adjust range
Speed
Pressure
Windy
Motor
KX500
Ф1.83
190-380
21-28
8%-10%
11
125-1250
1680
2494
29668
30
KX600
Ф2.2
150-350
30-35
8%-10%
15
1200
2400
34996
37
KX700
Ф2.4
130-320
35-46
8%-10%
18.5
1000
2390
64188
55
KX800
Ф2.6
120-280
55-65
8%-10%
30
132-1320
980
2546
86331
90
KX900
Ф3.0
120-280
70-86
8%-10%
55
800
2456
99493
110
KX1000
Ф3.5
120-280
90-115
8%-10%
75
900
2684
136430
132
KX1200
Ф3.8
120-260
120-160
8%-10%
90
120-1480
680
2771
165164
160
mill (m)
speed
(r/min)
(kw)
fineness
(80um)
(kw)
(r/min)
（r/min）
(pa)
content(m³/h)
power(kw)
